Standard Laminated Glass Production Line
Glass Width: 300 –3300mm
Glass Length: 420 –12000mm
Glass Thickness: 4 – 80mm
Running Speed: 0 – 2.5m/min
Applications: Designed for laminated glass production in construction, automotive, photovoltaic and related industries, covering architectural glazing, interior partitions, automotive windshields, thin-film silicon cell encapsulation and more.
It removes air between glass and PVB interlayer via preheating & pre‑pressing, preparing for final pressing — the core process of laminated glass manufacturing.
Introduction

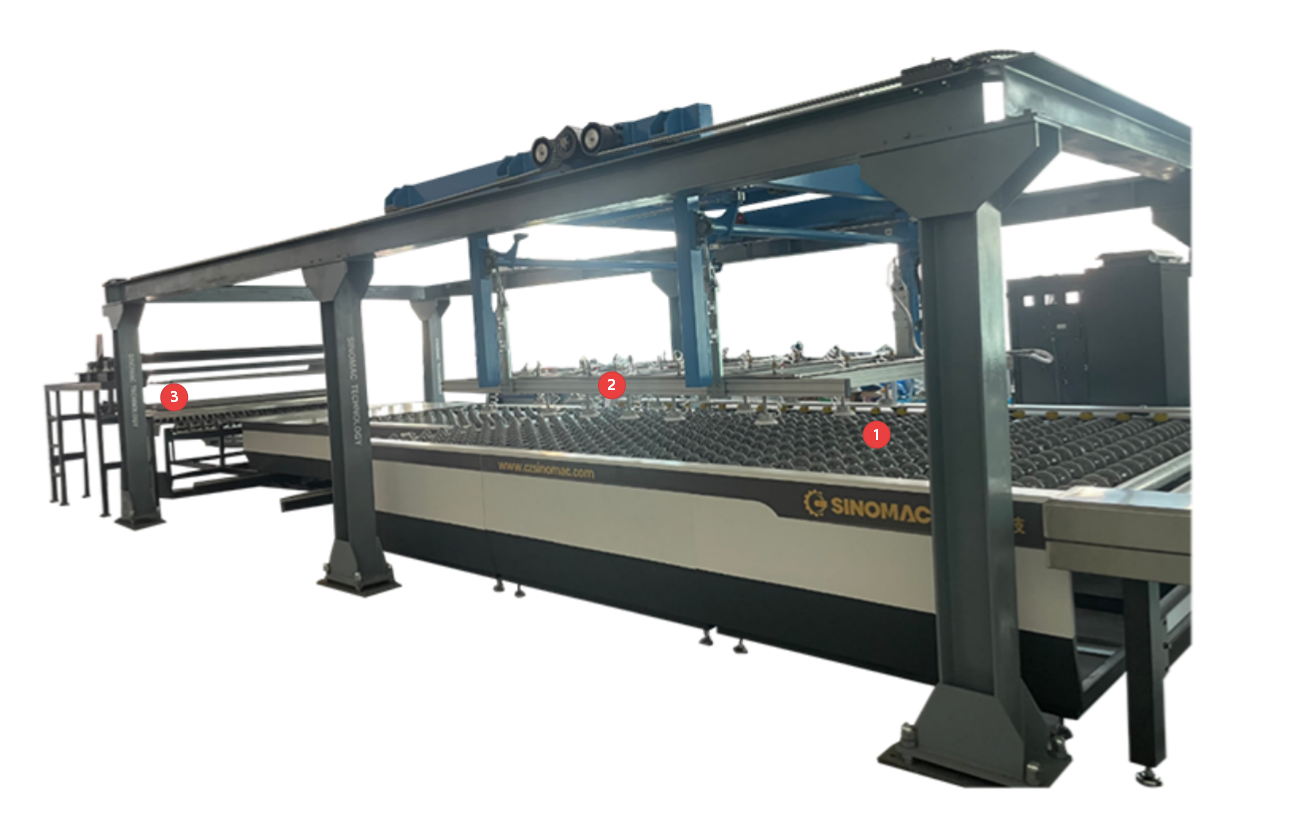

SINOMAC Conventional Laminated Glass Production Line is an automated solution specially designed for laminated glass manufacturing. Adopting a modular structure, it integrates automatic loading, washing, laminating, preheating & pre-pressing and unloading stations for continuous production. Equipped with precise temperature and pressure control systems, it ensures stable and reliable performance during preheating and pre-pressing.
The line features a rational layout, user-friendly operation, high production efficiency and excellent yield rate. With mature and stable performance, it guarantees high-quality laminated glass production, making it an ideal choice for manufacturers to achieve large-scale and automated production.
SINOMAC Conventional Laminated Glass Production Line is an automated solution specially designed for laminated glass manufacturing. Adopting a modular structure, it integrates automatic loading, washing, laminating, preheating & pre-pressing and unloading stations for continuous production. Equipped with precise temperature and pressure control systems, it ensures stable and reliable performance during preheating and pre-pressing.
The line features a rational layout, user-friendly operation, high production efficiency and excellent yield rate. With mature and stable performance, it guarantees high-quality laminated glass production, making it an ideal choice for manufacturers to achieve large-scale and automated production.

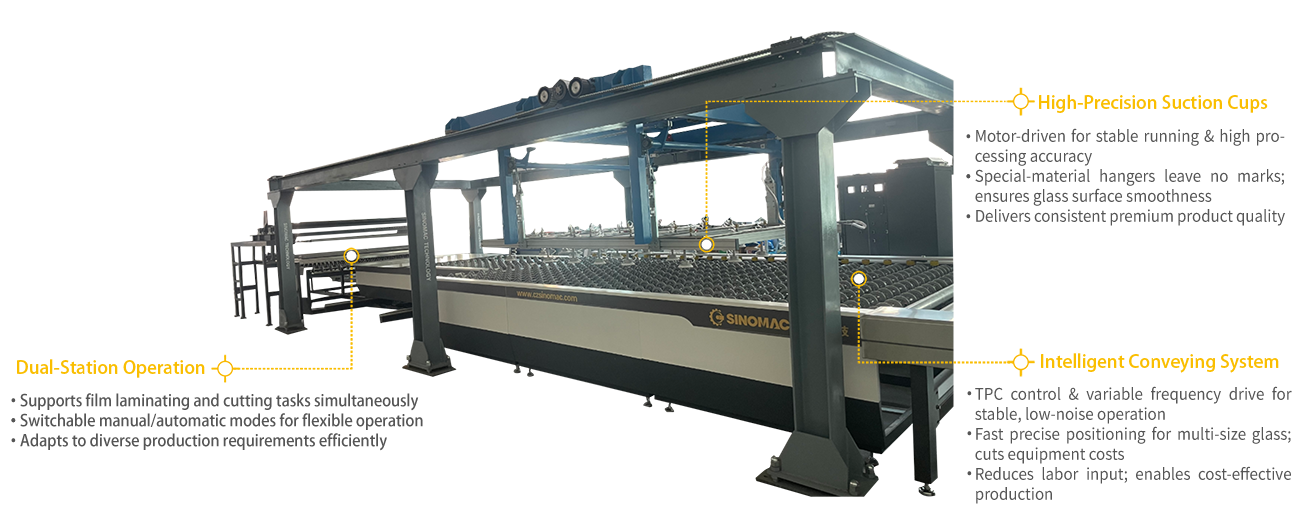

Intelligent Conveying System
TPC control & variable frequency drive for stable, low-noise operation.
Fast precise positioning for multi-size glass; cuts equipment costs.
Reduces labor input; enables cost-effective production.
High-Precision Suction Cups
Motor-driven for stable running & high processing accuracy.
Special-material hangers leave no marks; ensures glass surface smoothness.
Delivers consistent premium product quality.
Dual-Station Operation
Supports film laminating and cutting tasks simultaneously.
Switchable manual/automatic modes for flexible operation.
Adapts to diverse production requirements efficiently.
Advantages
Precise Control
Self-developed TPC control software (high precision) and Siemens PLC for electrical control.
Efficient Cleaning
Sturdy, elegant cleaner with energy-saving design, shutdown protection and independent air supply for cleaner glass.
Stable & Reliable
Inverter and non-contact sensors ensure smooth operation, sensitive response, high precision and low wear; easy maintenance.
Clean Lamination
Special-material suckers of the hanger leave no marks on glass, ensuring high-quality products.
Parameters
| Model | Max. Glass Size (mm) | Min. Glass Size(mm) | Glass Thickness(mm) | Running Speed(m/min) | Power(KW) | Capacity |
|---|---|---|---|---|---|---|
| SN-JCX2050 | 2000*5000 | 300*420 | 4-80 | 0-2.5 | 130.8 | 1100 |
| SN-JCX2060 | 2000*6000 | 300*450 | 4-80 | 0-2.5 | 150.8 | 1200 |
| SN-JCX2560 | 2500*6000 | 300*450 | 4-80 | 0-2.5 | 147.3 | 1500 |
| SN-JCX2580 | 2500*8000 | 300*450 | 4-80 | 0-2.5 | 160.3 | 1800 |
| SN-JCX3080 | 3000*8000 | 300*450 | 4-80 | 0-2.5 | 181.2 | 2000 |
| SN-JCX3380 | 3300*8000 | 300*450 | 4-80 | 0-2.5 | 200.3 | 2350 |
| SN-JCX33120 | 3300*12000 | 300*450 | 4-80 | 0-2.5 | 211.4 | 3000 |
* All data above is for reference only. For detailed specifications, please refer to the actual product and official product manual. Unless otherwise stated, all data displayed on this website is reserved and interpreted by SINOMAC.
* For further information on other models, please feel free to contact us.
