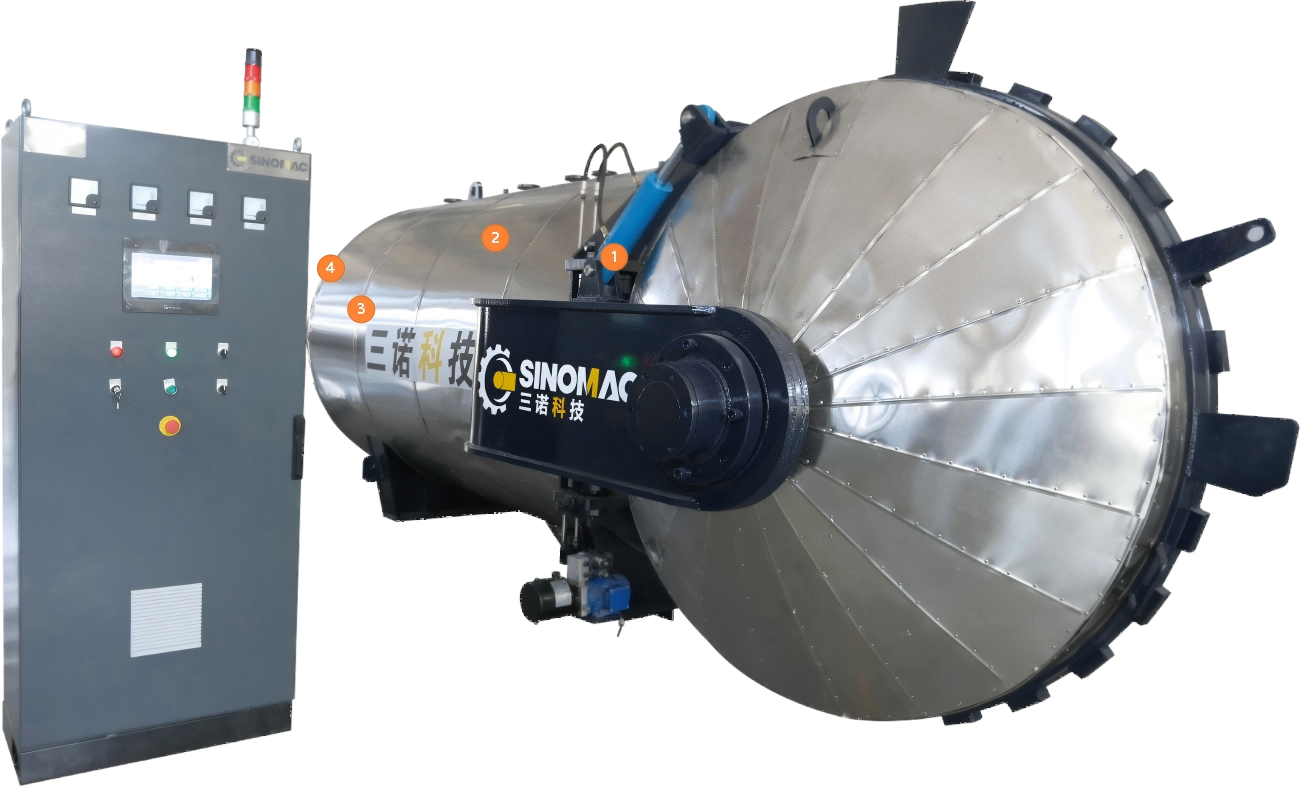

Autoclave for Medical Waste Treatment
Effective Diameter: 1000 – 2000mm
Effective Length: 1800 –12000mm
Operating Temperature: 134 – 165℃
Waste Processing Capacity: 100 – 1600kg
Sterilization Efficiency: 99.9999%
Applications: Specifically designed for the harmless treatment of infectious medical waste in medical institutions and medical waste disposal centers. It is used for sterilizing medical hazardous waste such as infectious dressings, laboratory utensils, surgical waste, and pathogen cultures, ensuring that medical waste does not cause secondary pollution or disease transmission in subsequent disposal processes.
Introduction
The SINOMAC Autoclave for Medical Waste Treatment is a special equipment designed for the harmless disposal of medical waste. Using high-temperature saturated steam as the sterilization medium, it ensures that all points inside the autoclave reach and maintain effective sterilization temperature and time through precise temperature and pressure control, completely inactivating various pathogenic microorganisms including bacteria, viruses, and spores. Equipped with a comprehensive waste gas treatment system, it effectively processes the waste gas generated during sterilization to prevent environmental pollution. Featuring thorough sterilization, high automation, safety, reliability, and environmental friendliness, this series ensures the safety and effectiveness of the medical waste treatment process with its unique design. It is a key device for medical institutions to achieve harmless treatment of medical waste.
The SINOMAC Autoclave for Medical Waste Treatment is a special equipment designed for the harmless disposal of medical waste. Using high-temperature saturated steam as the sterilization medium, it ensures that all points inside the autoclave reach and maintain effective sterilization temperature and time through precise temperature and pressure control, completely inactivating various pathogenic microorganisms including bacteria, viruses, and spores. Equipped with a comprehensive waste gas treatment system, it effectively processes the waste gas generated during sterilization to prevent environmental pollution. Featuring thorough sterilization, high automation, safety, reliability, and environmental friendliness, this series ensures the safety and effectiveness of the medical waste treatment process with its unique design. It is a key device for medical institutions to achieve harmless treatment of medical waste.

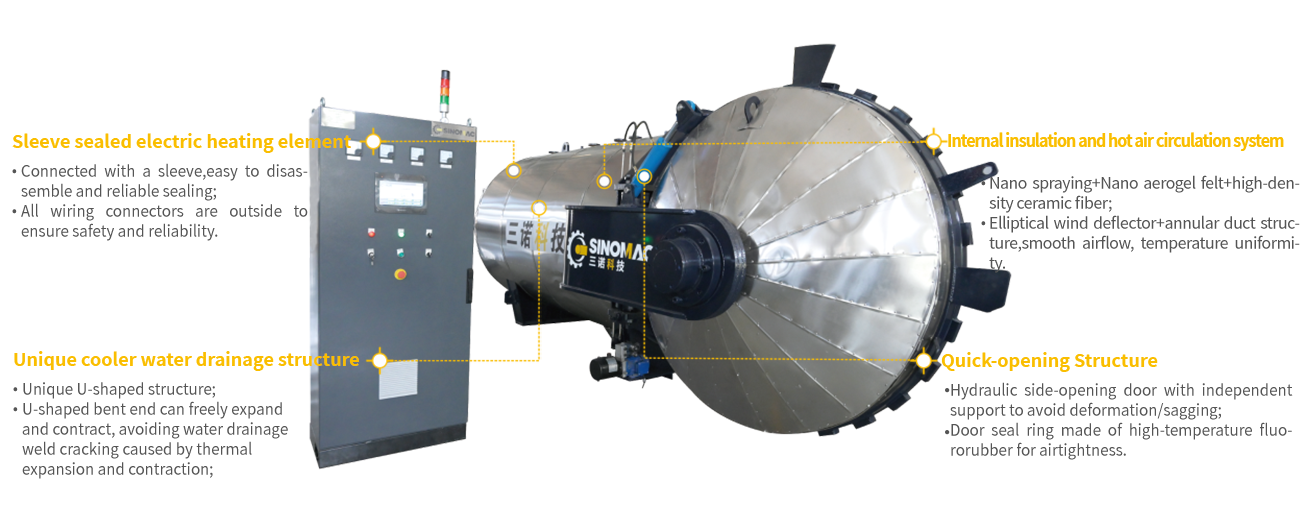

Quick-opening Structure
Hydraulic side-opening door with independent support to avoid deformation/sagging.
Door seal ring made of high-temperature fluororubber for airtightness.
Internal insulation and hot air circulation system
Nano spraying+Nano aerogel felt+high-density ceramic fiber;
Elliptical wind deflector+annular duct structure,smooth airflow, temperature uniformity.
Unique cooler water drainage structure
Unique U-shaped structure;
U-shaped bent end can freely expand and contract, avoiding water drainage weld cracking caused by thermal expansion and contraction;
Sleeve sealed electric heating element
Connected with a sleeve,easy to disassemble and reliable sealing;
All wiring connectors are outside to ensure safety and reliability.
Advantages
Superior Sterilization
High-pressure saturated steam enables fast, complete microbial inactivation, complying with EN and other standards to ensure harmless waste treatment.
Safety & Compliance
Multiple safety protections, chemical/biological indicator monitoring and data logging fully meet regulatory requirements.
Economical & Eco-Friendly
Lower cost than most non-incineration technologies; no chemical additives & no secondary pollution. Waste volume reduced by 60%–80% for safe landfill.
Flexible & Intelligent
Models from benchtop to industrial-scale systems for various capacity needs. Automated & programmable operation improves efficiency with less manual intervention.
Parameters
| Model | Working Diameter(mm) | Working Length(mm) | Working Temperature(ºC) | Working Pressure(Mpa) | Waste Capacity(kg) | Sterilization Efficiency |
|---|---|---|---|---|---|---|
| SN-YLGF100 | 1000 | 1800 | 134-165 | 0.5-3.0 | 100 | 99.9999% |
| SN-YLGF200 | 1250 | 2500 | 134-165 | 0.5-3.0 | 200 | 99.9999% |
| SN-YLGF300 | 1650 | 3000 | 134-165 | 0.5-3.0 | 300 | 99.9999% |
| SN-YLGF400 | 1650 | 4000 | 134-165 | 0.5-3.0 | 400 | 99.9999% |
| SN-YLGF500 | 1650 | 5000 | 134-165 | 0.5-3.0 | 500 | 99.9999% |
| SN-YLGF600 | 1650 | 6000 | 134-165 | 0.5-3.0 | 600 | 99.9999% |
| SN-YLGF800 | 2000 | 6000 | 134-165 | 0.5-3.0 | 800 | 99.9999% |
| SN-YLGF1100 | 2000 | 8000 | 134-165 | 0.5-3.0 | 1100 | 99.9999% |
| SN-YLGF1400 | 2000 | 10000 | 134-165 | 0.5-3.0 | 1400 | 99.9999% |
| SN-YLGF1600 | 2000 | 12000 | 134-165 | 0.5-3.0 | 1600 | 99.9999% |
* All data above is for reference only. For detailed specifications, please refer to the actual product and official product manual. Unless otherwise stated, all data displayed on this website is reserved and interpreted by SINOMAC.
* For further information on other models, please feel free to contact us.
