Composite Curing Oven
Working Length: 1000 – 5000mm
Working Width: 1000 – 5000mm
Working Height: 1000 – 5000mm
Working Temperature: 100 – 500℃
Temperature Uniformity: ± 2℃
Applications: Mainly used for the thermal curing of composite products in aerospace, wind turbine blades, automotive parts, sports equipment and other fields. It is especially suitable for the curing of carbon fiber composites, FRP (fiber-reinforced plastic) products, prepregs and other materials, and can process various composite plates, pipes and structural parts.
Introduction
The SINOMAC Composite Curing Oven is a heat treatment equipment specially developed for the composite industry. Adopting an advanced hot air circulation system and high-precision temperature control technology, it ensures that the temperature uniformity inside the oven can reach ±2℃. Equipped with an intelligent control system, it can realize multi-stage programmed heating and heat preservation to meet the process requirements of different composite materials. The furnace body is made of high-quality thermal insulation materials, with high thermal energy utilization rate and low operating cost. Featuring excellent temperature uniformity, high temperature control accuracy, easy operation, energy saving and environmental protection, this series is an ideal equipment for the curing of composite products.
The SINOMAC Composite Curing Oven is a heat treatment equipment specially developed for the composite industry. Adopting an advanced hot air circulation system and high-precision temperature control technology, it ensures that the temperature uniformity inside the oven can reach ±2℃. Equipped with an intelligent control system, it can realize multi-stage programmed heating and heat preservation to meet the process requirements of different composite materials. The furnace body is made of high-quality thermal insulation materials, with high thermal energy utilization rate and low operating cost. Featuring excellent temperature uniformity, high temperature control accuracy, easy operation, energy saving and environmental protection, this series is an ideal equipment for the curing of composite products.

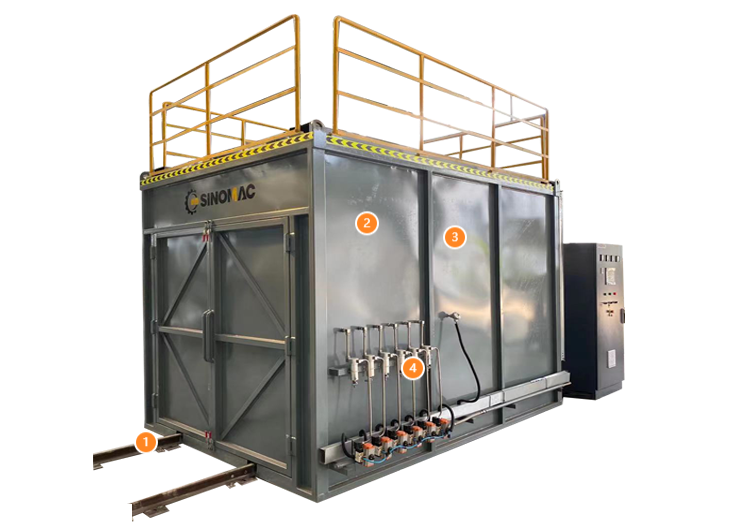

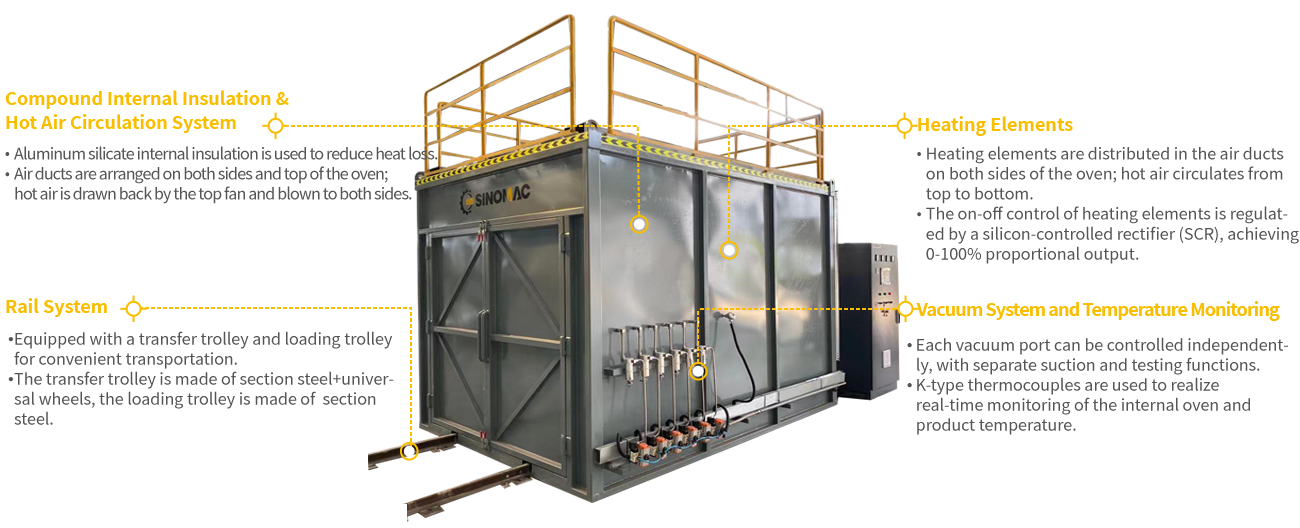

Rail System
Equipped with a transfer trolley and loading trolley for convenient transportation.
The transfer trolley is made of section steel+universal wheels, the loading trolley is made of section steel.
Compound Internal Insulation & Hot Air Circulation System
Aluminum silicate internal insulation is used to reduce heat loss.
Air ducts are arranged on both sides and top of the oven; hot air is drawn back by the top fan and blown to both sides.
Heating Elements
Heating elements are distributed in the air ducts on both sides of the oven; hot air circulates from top to bottom.
The on-off control of heating elements is regulated by a silicon-controlled rectifier (SCR), achieving 0-100% proportional output.
Vacuum System and Temperature Monitoring
Each vacuum port can be controlled independently, with separate suction and testing functions.
K-type thermocouples are used to realize real-time monitoring of the internal oven and product temperature.
Advantages
Highly Integrated Vacuum System
Integrated multi-port vacuum system with jack panel for easy thermocouple and vacuum bag connection, enabling full-process monitoring.
Modular Zoned Control
Unique modular design with zoned control optimizes production efficiency.
Excellent Temperature Uniformity
Standard uniformity: ±2°C or better, guaranteeing stable curing quality.
Diverse Manufacturing Standards
Compliant with AMS2750, BAC5621, NADCAP, AS9100 and global standards, serving customers worldwide.
Parameters
| Model | Effective Inner Dimensions L*W*H(m) | Working Temperature (ºC) | Temperature Uniformity (ºC) | Part Thermocouple | Vacuum line | Heating Power(KW) |
|---|---|---|---|---|---|---|
| SN-GHL0805 | 0.8*0.5*0.5 | 250-420 | ±3 | 10-80 | 4-40 | 6 |
| SN-GHL1008 | 1.0*0.8*0.8 | 250-420 | ±3 | 10-80 | 4-40 | 12 |
| SN-GHL1515 | 1.5*1.5*1.5 | 250-420 | ±3 | 10-80 | 4-40 | 36 |
| SN-GHL2015 | 2.0*1.5*1.5 | 250-420 | ±3 | 10-80 | 4-40 | 54 |
| SN-GHL2515 | 2.5*1.5*1.5 | 250-420 | ±3 | 10-80 | 4-40 | 63 |
| SN-GHL3020 | 3.0*2.0*2.0 | 250-420 | ±3 | 10-80 | 4-40 | 108 |
| SN-GHL4020 | 4.0*2.0*2.0 | 250-420 | ±3 | 10-80 | 4-40 | 126 |
| SN-GHL4025 | 4.0*2.5*2.5 | 250-420 | ±3 | 10-80 | 4-40 | 144 |
| SN-GHL5025 | 5.0*2.5*2.5 | 250-420 | ±3 | 10-80 | 4-40 | 162 |
| SN-GHL6030 | 6.0*3.0*3.0 | 250-420 | ±3 | 10-80 | 4-40 | 216 |
* All data above is for reference only. For detailed specifications, please refer to the actual product and official product manual. Unless otherwise stated, all data displayed on this website is reserved and interpreted by SINOMAC.
* For further information on other models, please feel free to contact us.
