Small-Sized Autoclave
Effective Diameter: 1000 – 2000mm
Effective Length: 1000 – 3000mm
Operating Temperature: 100 – 450℃
Operating Pressure: 0.8 – 5.0 Mpa
Working Medium: Compressed Air / Nitrogen
Applications: Ideal for material labs in research institutes and universities, as well as component development and small-to-medium batch production in high-end sports goods, UAV, and precision instrument industries. Typical uses include process exploration of new materials (resins, prepregs), fabrication of standard mechanical test specimens, and curing of small UAV fuselages/ wings, high-performance bicycle frames, tennis rackets, and industrial lightweight brackets. The SINOMAC Small-Sized Autoclave serves as a perfect bridge between research and production.
Introduction
The SINOMAC Small-Sized Autoclave is a cost-effective, highly flexible platform designed for cutting-edge composite research, process development, and small-batch high-quality production. It integrates a full set of automated control systems in a limited space, with excellent temperature and pressure uniformity to ensure accurate experimental data and repeatable processes. Designed for exceptional ease of operation and safety, it features rapid heating and cooling functions to greatly improve R&D efficiency. With a compact structure, outstanding cost-performance ratio, ultra-low energy consumption, simple installation, and intelligent control, this series is the preferred equipment for labs to validate new materials and explore new processes, helping users efficiently transform innovative ideas into mature products.
The SINOMAC Small-Sized Autoclave is a cost-effective, highly flexible platform designed for cutting-edge composite research, process development, and small-batch high-quality production. It integrates a full set of automated control systems in a limited space, with excellent temperature and pressure uniformity to ensure accurate experimental data and repeatable processes. Designed for exceptional ease of operation and safety, it features rapid heating and cooling functions to greatly improve R&D efficiency. With a compact structure, outstanding cost-performance ratio, ultra-low energy consumption, simple installation, and intelligent control, this series is the preferred equipment for labs to validate new materials and explore new processes, helping users efficiently transform innovative ideas into mature products.

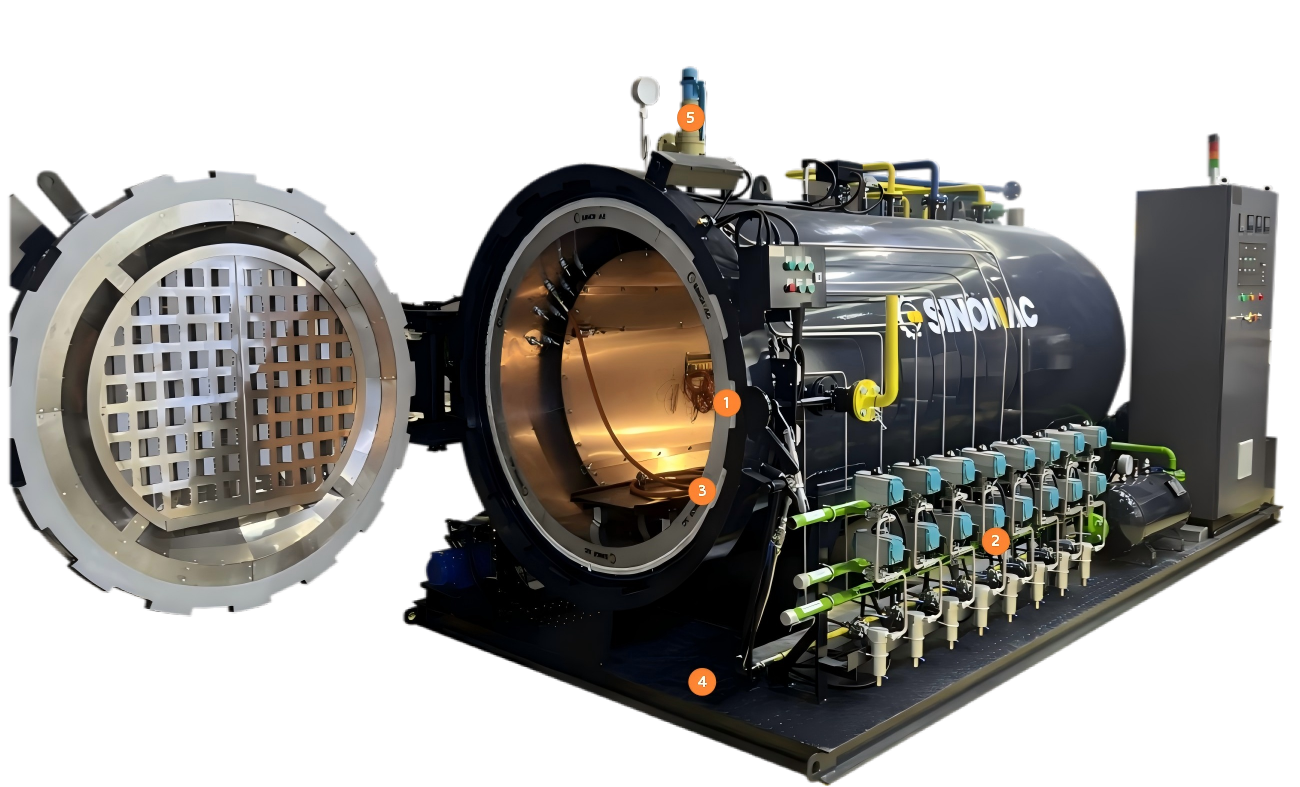

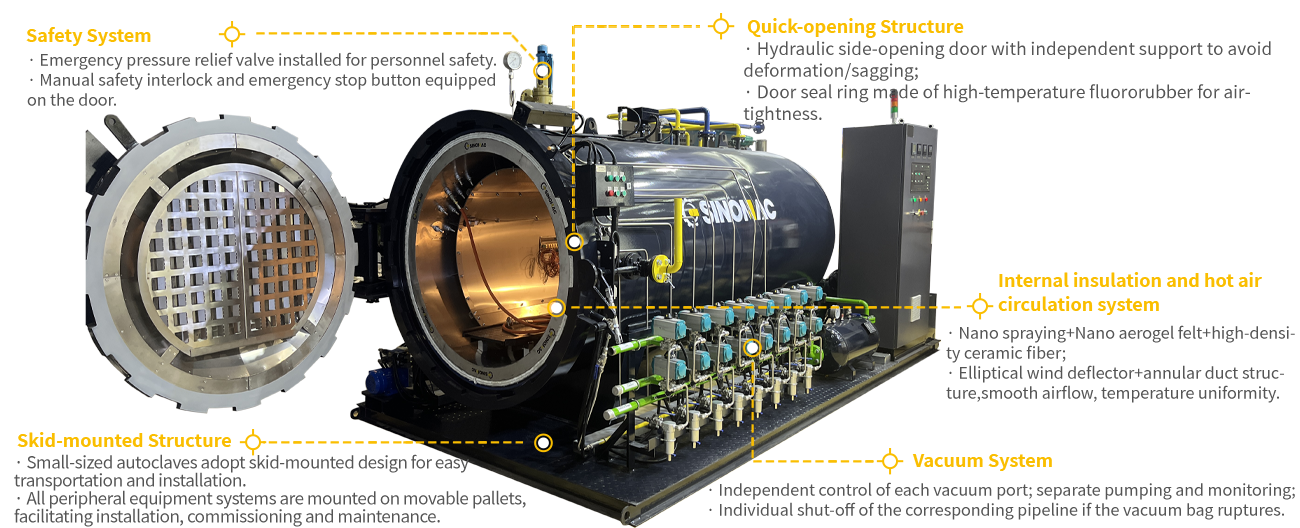

Quick-opening Structure
Hydraulic side-opening door with independent support to avoid deformation/sagging;
Door seal ring made of high-temperature fluororubber for airtightness.
Vacuum System
Independent control of each vacuum port; separate pumping and monitoring;
Individual shut-off of the corresponding pipeline if the vacuum bag ruptures.
Internal insulation and hot air circulation system
Nano spraying+Nano aerogel felt+high-density ceramic fiber;
Elliptical wind deflector+annular duct structure,smooth airflow, temperature uniformity.
Skid-mounted Structure
Small-sized autoclaves adopt skid-mounted design for easy transportation and installation.
All peripheral equipment systems are mounted on movable pallets, facilitating installation, commissioning and maintenance.
Safety System
Emergency pressure relief valve installed for personnel safety.
Manual safety interlock and emergency stop button equipped on the door.
Advantages
Multiple Safety Protection
Mechanical, electrical and software interlocks ensure safe operation of autoclaves as pressure vessels.
Modular Design
Modular pressure, cooling, vacuum and loading systems enable easy installation and maintenance.
TPC Control Software
Windows-based advanced TPC system with reliable performance and powerful data acquisition, analysis and reporting.
Global Service
Compliant with GB150, ASME, PED, EAC(GOST) and other global standards, serving worldwide customers.
Parameters
Model | Working Diameter(mm) | Working Length(mm) | Working Temperature (ºC) | Working Pressure (Mpa) | Part Thermocouple | Vacuum line |
|---|---|---|---|---|---|---|
| SN-CGF1010G | 1000 | 1000 | 100-450 | 0.8~5.0 | 4 | 4 |
| SN-CGF1015G | 1000 | 1500 | 100-450 | 0.8~5.0 | 4 | 4 |
| SN-CGF1020G | 1000 | 2000 | 100-450 | 0.8~5.0 | 6 | 6 |
| SN-CGF1025G | 1000 | 2500 | 100-450 | 0.8~5.0 | 6 | 6 |
| SN-CGF1030G | 1000 | 3000 | 100-450 | 0.8~5.0 | 8 | 8 |
| SN-CGF1520G | 1500 | 2000 | 100-450 | 0.8~5.0 | 8 | 8 |
| SN-CGF1530G | 1500 | 3000 | 100-450 | 0.8~5.0 | 10 | 10 |
| SN-CGF2030G | 2000 | 3000 | 100-450 | 0.8~5.0 | 10 | 10 |
* All data above is for reference only. For detailed specifications, please refer to the actual product and official product manual. Unless otherwise stated, all data displayed on this website is reserved and interpreted by SINOMAC.
* For further information on other models, please feel free to contact us.
