Extra-Large Autoclave
Effective Diameter: ≥ 4500mm
Effective Length: ≥ 8000mm
Operating Temperature: 100–450℃
Operating Pressure: 0.8 – 5.0Mpa
Working Medium: Compressed Air / Nitrogen
Application: Primarily used in strategic sectors such as aerospace and national defense. It is a cutting-edge piece of equipment designed for the integral co-curing/co-bonding processes of large and extra-large composite components. Typical products include new-generation commercial aircraft fuselage barrels, integral wing panels, helicopter main rotors, launch vehicle fairings and cabin sections, as well as large structural components for satellites and space stations.
SINOMAC Extra-Large Autoclave represents a high level in the field of high-end composite manufacturing equipment. With extremely high technology integration and stable, reliable operation, it serves as a core platform supporting the lightweight and integrated manufacturing of high-end equipment.
Introduction
SINOMAC Extra-Large Autoclave, our flagship model, is engineered for the integral forming of large composite components in aerospace and other high-end fields. It overcomes key challenges in uniformity, stability and safety control of extra-large structures under extreme process conditions.
Every optimized design – from tank load-bearing and precision forming, long-distance uniform thermal field organization, multi-point intelligent pressure control, to system-wide energy efficiency and safety interlocks – is tailored to extra-large component manufacturing.
This autoclave delivers maximum size capacity, superior process uniformity, high automation, intrinsic safety, and full-lifecycle reliability, meeting modern industry’s stringent demands for high-quality, efficient and consistent production of large composite parts.
SINOMAC Extra-Large Autoclave, our flagship model, is engineered for the integral forming of large composite components in aerospace and other high-end fields. It overcomes key challenges in uniformity, stability and safety control of extra-large structures under extreme process conditions.
Every optimized design – from tank load-bearing and precision forming, long-distance uniform thermal field organization, multi-point intelligent pressure control, to system-wide energy efficiency and safety interlocks – is tailored to extra-large component manufacturing.
This autoclave delivers maximum size capacity, superior process uniformity, high automation, intrinsic safety, and full-lifecycle reliability, meeting modern industry’s stringent demands for high-quality, efficient and consistent production of large composite parts.

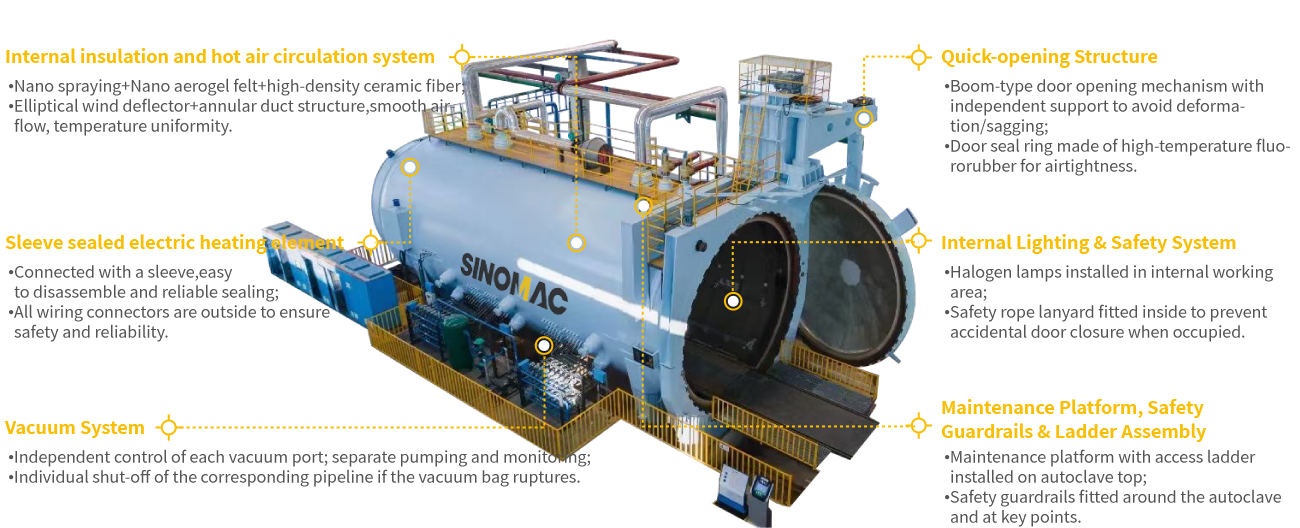

Quick-opening Structure
Boom-type door opening mechanism with independent support to avoid deformation/sagging.
Door seal ring made of high-temperature fluororubber for airtightness.
Internal insulation and hot air circulation system
Nano spraying+Nano aerogel felt+high-density ceramic fiber.
Elliptical wind deflector+annular duct structure,smooth airflow, temperature uniformity.
Sleeve sealed electric heating element
Connected with a sleeve,easy to disassemble and reliable sealing;
All wiring connectors are outside to ensure safety and reliability.
Maintenance Platform, Safety Guardrails & Ladder Assembly
Maintenance platform with access ladder installed on autoclave top.
Safety guardrails fitted around the autoclave and at key points.
Internal Lighting & Safety System
Halogen lamps installed in internal working area.
Safety rope lanyard fitted inside to prevent accidental door closure when occupied.
Vacuum System
Independent control of each vacuum port; separate pumping and monitoring.
Individual shut-off of the corresponding pipeline if the vacuum bag ruptures.
Advantages
Multiple Safety Protection
Mechanical, electrical and software interlocks ensure safe operation of autoclaves as pressure vessels.
Modular Design
Modular pressure, cooling, vacuum and loading systems enable easy installation and maintenance.
TPC Control Software
Windows-based advanced TPC system with reliable performance and powerful data acquisition, analysis and reporting.
Global Service
Compliant with GB150, ASME, PED, EAC(GOST) and other global standards, serving worldwide customers.
Parameters
Model | Working Diameter(mm) | Working Length(mm) | Working Temperature (ºC) | Working Pressure (Mpa) | Part Thermocouple | Vacuum line |
|---|---|---|---|---|---|---|
| SN-CGF45100G | 4500 | 10000 | 100-450 | 0.8~5.0 | 64 | 32 |
| SN-CGF45150G | 4500 | 15000 | 100-450 | 0.8~5.0 | 64 | 32 |
| SN-CGF45200G | 4500 | 12000 | 100-450 | 0.8~5.0 | 64 | 32 |
| SN-CGF50100G | 5000 | 10000 | 100-450 | 0.8~5.0 | 80 | 40 |
| SN-CGF50150G | 5000 | 15000 | 100-450 | 0.8~5.0 | 80 | 40 |
| SN-CGF50200G | 5000 | 20000 | 100-450 | 0.8~5.0 | 80 | 40 |
| SN-CGF60120G | 6000 | 12000 | 100-450 | 0.8~5.0 | 100 | 50 |
| SN-CGF60160G | 6000 | 16000 | 100-450 | 0.8~5.0 | 100 | 50 |
| SN-CGF60200G | 6000 | 20000 | 100-450 | 0.8~5.0 | 100 | 50 |
| SN-CGF60250G | 6000 | 25000 | 100-450 | 0.8~5.0 | 100 | 50 |
| SN-CGF60300G | 6000 | 30000 | 100-450 | 0.8~5.0 | 100 | 50 |
* All data above is for reference only. For detailed specifications, please refer to the actual product and official product manual. Unless otherwise stated, all data displayed on this website is reserved and interpreted by SINOMAC.
* For further information on other models, please feel free to contact us.
