Autoclave for Photovoltaic (PV) Glass
Effective Diameter: 1200 – 3650mm
Effective Length: 2000 – 12000mm
Max. Glass Size: 1000×2000 mm – 3300×12000 mm
Design Temperature: 160℃
Design Pressure: 1.5 Mpa
Applications: Specifically designed for the post-curing treatment of laminated PV modules, including mono-facial/bi-facial modules, thin-film modules and BIPV (building-integrated photovoltaics) modules. The high-temperature and high-pressure environment effectively eliminates residual bubbles in laminated modules, enhances the bonding strength between EVA/POE films, glass and backsheets, and significantly improves the insulation performance, weather resistance and service life of modules. It is a key device for ensuring the quality of PV modules.
Introduction
The SINOMAC Autoclave for PV Glass is a post-processing equipment specially designed for PV module production lines. Adopting a unique air distribution system and temperature control technology, it ensures a highly uniform temperature field inside the autoclave, preventing module deformation or hot spots caused by uneven heating. Equipped with an advanced pressure control system, it enables precise pressure curve programming to ensure full cross-linking and curing of the adhesive films. Featuring high processing efficiency, low energy consumption, high automation and easy operation and maintenance, this series provides important guarantee for the long-term reliability of PV modules with its stable performance, and is a core equipment for PV manufacturers to improve product quality.
The SINOMAC Autoclave for PV Glass is a post-processing equipment specially designed for PV module production lines. Adopting a unique air distribution system and temperature control technology, it ensures a highly uniform temperature field inside the autoclave, preventing module deformation or hot spots caused by uneven heating. Equipped with an advanced pressure control system, it enables precise pressure curve programming to ensure full cross-linking and curing of the adhesive films. Featuring high processing efficiency, low energy consumption, high automation and easy operation and maintenance, this series provides important guarantee for the long-term reliability of PV modules with its stable performance, and is a core equipment for PV manufacturers to improve product quality.

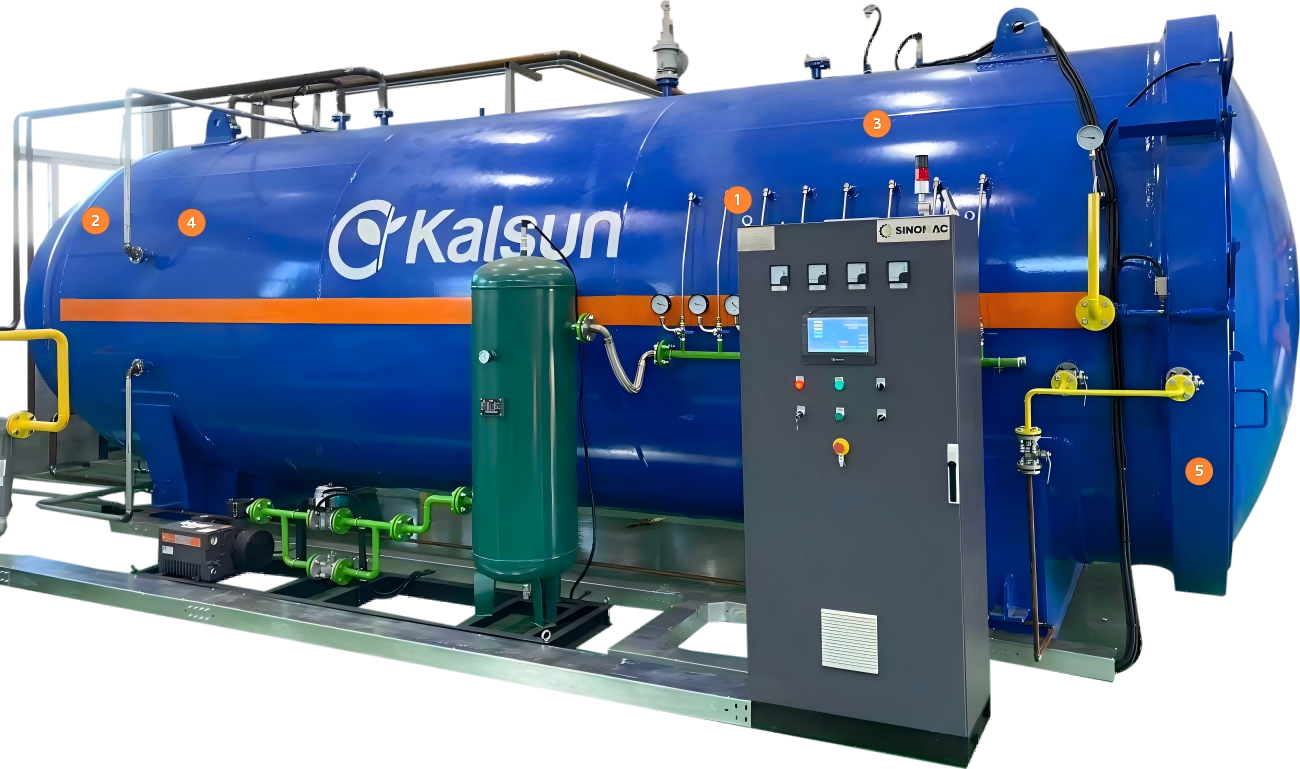

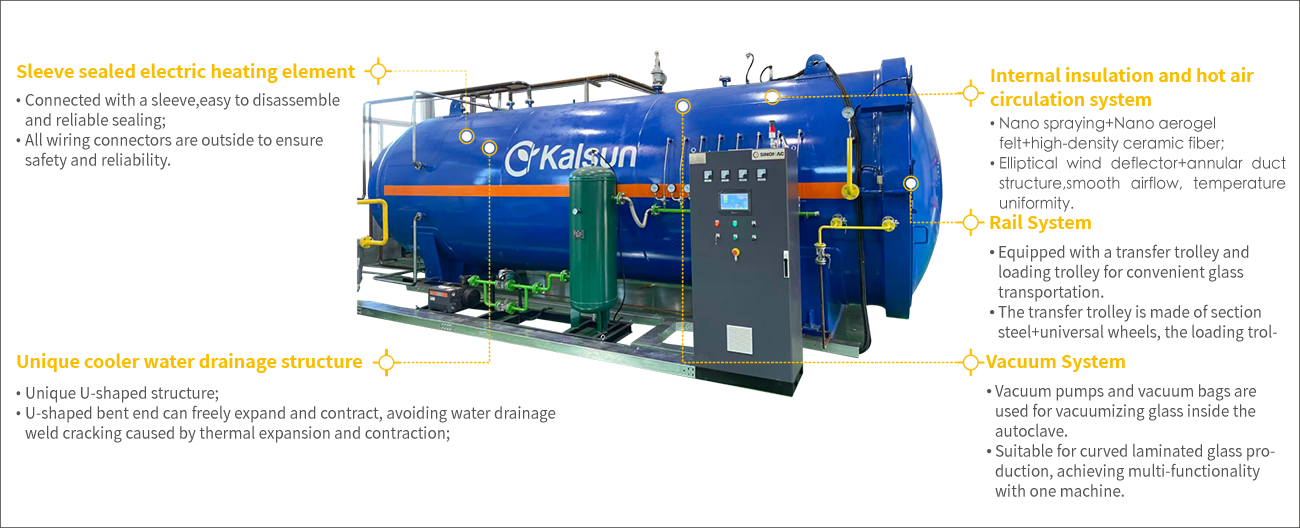

Vacuum System
Vacuum pumps and vacuum bags are used for vacuumizing glass inside the autoclave.
Suitable for curved laminated glass production, achieving multi-functionality with one machine.
Sleeve sealed electric heating element
Connected with a sleeve,easy to disassemble and reliable sealing.
All wiring connectors are outside to ensure safety and reliability.
Internal insulation and hot air circulation system
Nano spraying+Nano aerogel felt+high-density ceramic fiber.
Elliptical wind deflector+annular duct structure,smooth airflow, temperature uniformity.
Unique cooler water drainage structure
Unique U-shaped structure.
U-shaped bent end can freely expand and contract, avoiding water drainage weld cracking caused by thermal expansion and contraction.
Rail System
Equipped with a transfer trolley and loading trolley for convenient glass transportation.
The transfer trolley is made of section steel+universal wheels, the loading trolley is made of section steel.
Advantages
Multiple Safety Protection
Mechanical, electrical & software interlocks ensure maximum safety for glass autoclaves.
Multi-Function Design
One autoclave supports both laminated glass production and tempered glass heat soak treatment, cutting costs on investment, power and workshop space.
Multiple heating methods
Standard electric heating; steam, thermal oil & natural gas options available for diverse demands.
Global Service
Built to GB150, ASME, PED, EAC(GOST) and global standards, serving worldwide.
Parameters
| Model | Working Diameter(mm) | Working Length(mm) | Working Temperature (ºC) | Working Pressure (Mpa) | Max Glass size(mm) | Power(KW) |
|---|---|---|---|---|---|---|
| SN-BGF1220 | 1200 | 2000 | 160 | 1.6 | 1000×2000 | 54 |
| SN-BGF2040 | 2000 | 4000 | 160 | 1.6 | 1600×4000 | 72 |
| SN-BGF2660 | 2650 | 6000 | 160 | 1.6 | 2300×6000 | 144 |
| SN-BGF2860 | 2850 | 6000 | 160 | 1.6 | 2500×6000 | 162 |
| SN-BGF3060 | 3000 | 6000 | 160 | 1.6 | 2650×6000 | 192 |
| SN-BGF3080 | 3000 | 8000 | 160 | 1.6 | 2650×8000 | 225 |
| SN-BGF3380 | 3350 | 8000 | 160 | 1.6 | 3000×8000 | 270 |
| SN-BGF35100 | 3500 | 10000 | 160 | 1.6 | 3150×10000 | 441 |
| SN-BGF36120 | 3650 | 12000 | 160 | 1.6 | 3300×12000 | 567 |
* All data above is for reference only. For detailed specifications, please refer to the actual product and official product manual. Unless otherwise stated, all data displayed on this website is reserved and interpreted by SINOMAC.
* For further information on other models, please feel free to contact us.
