Autoclave for Automotive Safety Glass
Effective Diameter: 1200 – 3650mm
Effective Length: 2000 – 12000mm
Max. Glass Size:: 1000×2000mm – 3300×12000mm
Design Temperature: 160℃
Design Pressure: 1.5 Mpa
Applications: Specifically designed for the pre-treatment and high-pressure forming of automotive windshields, side windows, sunroofs, and architectural safety laminated glass. The high-temperature and high-pressure environment firmly bonds glass with PVB (polyvinyl butyral) interlayers, producing impact-resistant and penetration-resistant safety glass that fully meets the stringent standards of the automotive and construction industries.
Introduction
The SINOMAC Autoclave for Automotive Safety Glass is a key piece of equipment designed for safety laminated glass production lines. Adopting a specialized temperature field and air flow design, it ensures uniform heating of glass during high-pressure processing, effectively eliminating air bubbles and achieving optimal bonding between glass and PVB interlayers. Equipped with an intelligent temperature-pressure linked control system, it precisely executes complex process curves, guaranteeing high consistency and stability of product quality across batches. Featuring stable and reliable operation, low energy consumption, easy operation and maintenance, and high automation, this series is the ideal choice for automotive glass manufacturers to achieve efficient and high-quality production.
The SINOMAC Autoclave for Automotive Safety Glass is a key piece of equipment designed for safety laminated glass production lines. Adopting a specialized temperature field and air flow design, it ensures uniform heating of glass during high-pressure processing, effectively eliminating air bubbles and achieving optimal bonding between glass and PVB interlayers. Equipped with an intelligent temperature-pressure linked control system, it precisely executes complex process curves, guaranteeing high consistency and stability of product quality across batches. Featuring stable and reliable operation, low energy consumption, easy operation and maintenance, and high automation, this series is the ideal choice for automotive glass manufacturers to achieve efficient and high-quality production.

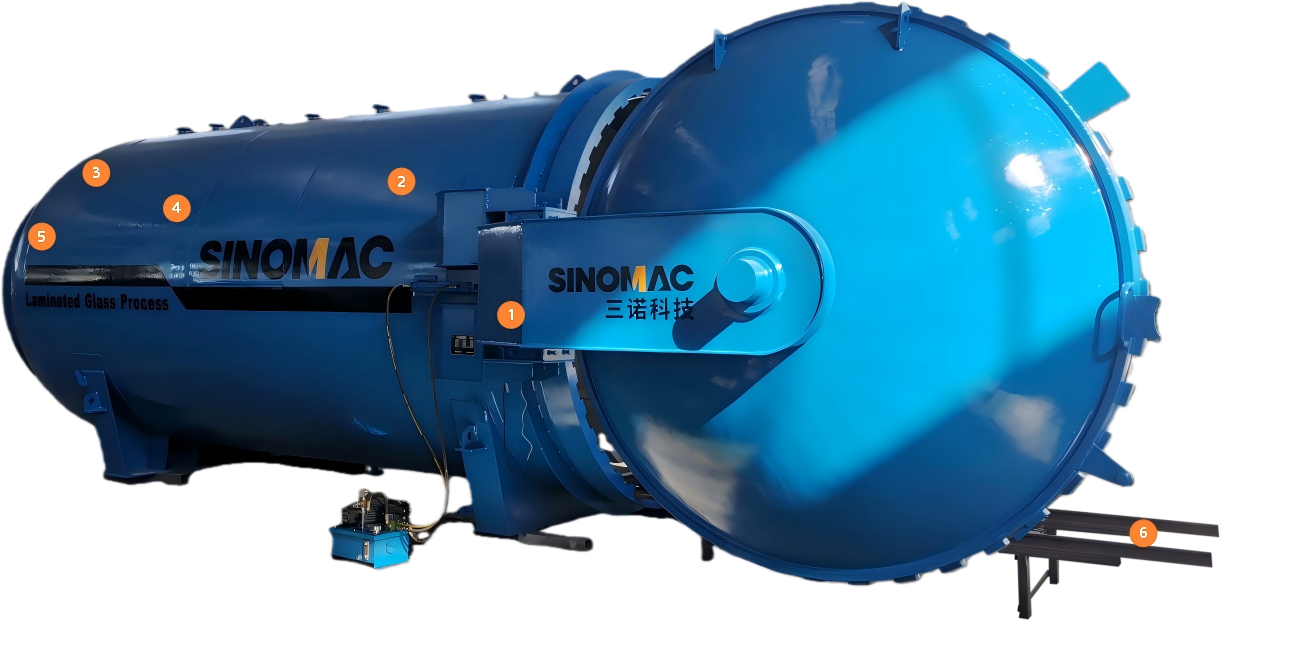

Quick-opening Structure
Hydraulic side-opening door with independent support to avoid deformation/sagging.
Door seal ring made of high-temperature fluororubber for airtightness.
Internal insulation and hot air circulation system
Nano spraying+Nano aerogel felt+high-density ceramic fiber.
Elliptical wind deflector+annular duct structure,smooth airflow, temperature uniformity.
Sleeve sealed electric heating element
Connected with a sleeve,easy to disassemble and reliable sealing.
All wiring connectors are outside to ensure safety and reliability.
Unique cooler water drainage structure
Unique U-shaped structure.
U-shaped bent end can freely expand and contract, avoiding water drainage weld cracking caused by thermal expansion and contraction.
Heating System
A special high-temperature static-seal pressure-resistant water-cooled motor is adopted.
Mounted at the tail of the autoclave body, the motor enables rapid temperature rise.
Rail System
Equipped with a transfer trolley and loading trolley for glass transportation.
The transfer trolley is made of section steel+universal wheels, loading trolley is made of section steel.
Advantages
Multiple Safety Protection
Mechanical, electrical & software interlocks ensure maximum safety for glass autoclaves.
Multi-Function Design
One autoclave supports both laminated glass production and tempered glass heat soak treatment, cutting costs on investment, power and workshop space.
Multiple heating methods
Standard electric heating; steam, thermal oil & natural gas options available for diverse demands.
Global Service
Built to GB150, ASME, PED, EAC(GOST) and global standards, serving worldwide.
Parameters
| Model | Working Diameter(mm) | Working Length(mm) | Working Temperature (ºC) | Working Pressure (Mpa) | Max Glass size(mm) | Power(KW) |
|---|---|---|---|---|---|---|
| SN-BGF1220 | 1200 | 2000 | 160 | 1.6 | 1000×2000 | 54 |
| SN-BGF2040 | 2000 | 4000 | 160 | 1.6 | 1600×4000 | 72 |
| SN-BGF2660 | 2650 | 6000 | 160 | 1.6 | 2300×6000 | 144 |
| SN-BGF2860 | 2850 | 6000 | 160 | 1.6 | 2500×6000 | 162 |
| SN-BGF3060 | 3000 | 6000 | 160 | 1.6 | 2650×6000 | 192 |
| SN-BGF3080 | 3000 | 8000 | 160 | 1.6 | 2650×8000 | 225 |
| SN-BGF3380 | 3350 | 8000 | 160 | 1.6 | 3000×8000 | 270 |
| SN-BGF35100 | 3500 | 10000 | 160 | 1.6 | 3150×10000 | 441 |
| SN-BGF36120 | 3650 | 12000 | 160 | 1.6 | 3300×12000 | 567 |
* All data above is for reference only. For detailed specifications, please refer to the actual product and official product manual. Unless otherwise stated, all data displayed on this website is reserved and interpreted by SINOMAC.
* For further information on other models, please feel free to contact us.
