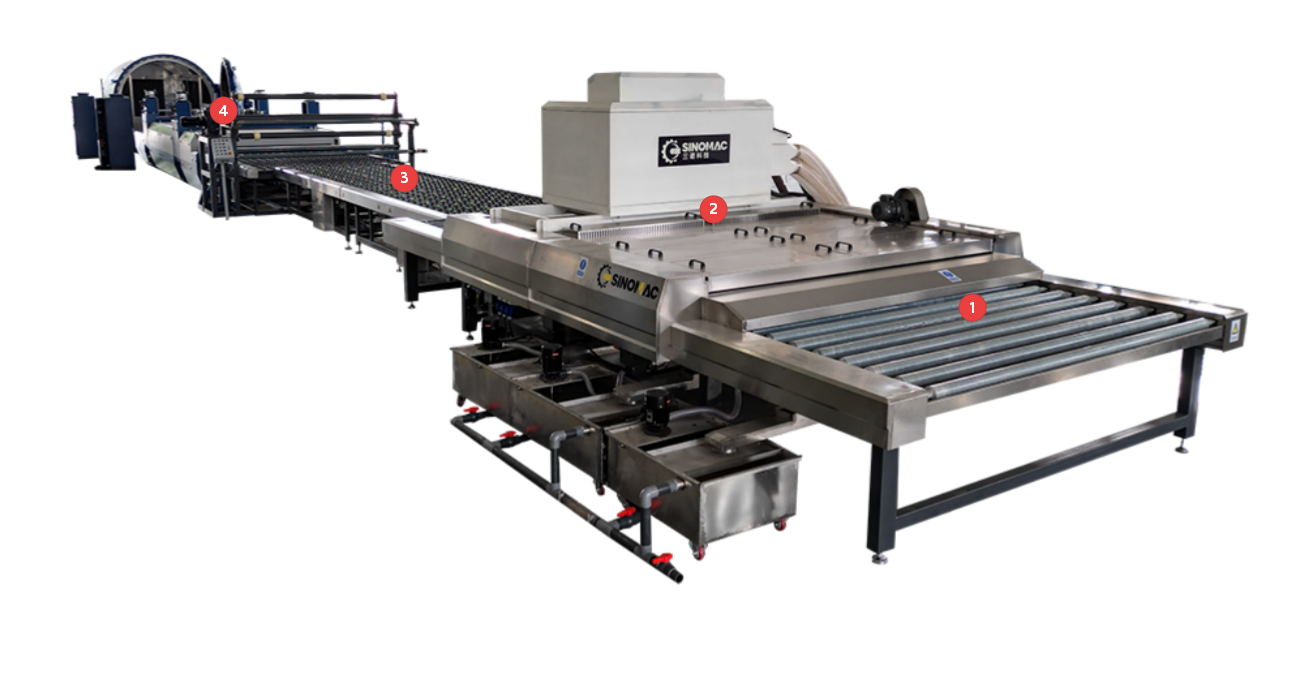

Full-Automatic Laminated Glass Production Line
Glass Width: 300 – 3300mm
Glass Length: 420 –12000mm
Glass Thickness: 4 – 80mm
Running Speed: 0 – 2.5m/min
Applications：Designed for large-scale production of high-end laminated glass, including architectural curtain walls, automotive windshields and photovoltaic module covers. It features full-process automation from raw glass washing, laminating, preheating & pre-pressing to high-temperature and high-pressure treatment, ideal for high-end products such as tempered laminated glass, curved tempered laminated glass and bulletproof glass.
Introduction
SINOMAC Full-Automatic Laminated Glass Production Line is an intelligent manufacturing system integrating mechanical, electrical, hydraulic and pneumatic technologies. With automatic loading, precise positioning & laminating, and intelligent temperature-pressure control, it realizes full-process data traceability. Key stations adopt redundant design to ensure stable and continuous production.
The line features high automation, fast production efficiency, excellent product yield and low labor cost. Its modular design allows flexible expansion based on capacity requirements, making it the optimal solution for large glass processing enterprises to build intelligent factories.
SINOMAC Full-Automatic Laminated Glass Production Line is an intelligent manufacturing system integrating mechanical, electrical, hydraulic and pneumatic technologies. With automatic loading, precise positioning & laminating, and intelligent temperature-pressure control, it realizes full-process data traceability. Key stations adopt redundant design to ensure stable and continuous production.
The line features high automation, fast production efficiency, excellent product yield and low labor cost. Its modular design allows flexible expansion based on capacity requirements, making it the optimal solution for large glass processing enterprises to build intelligent factories.

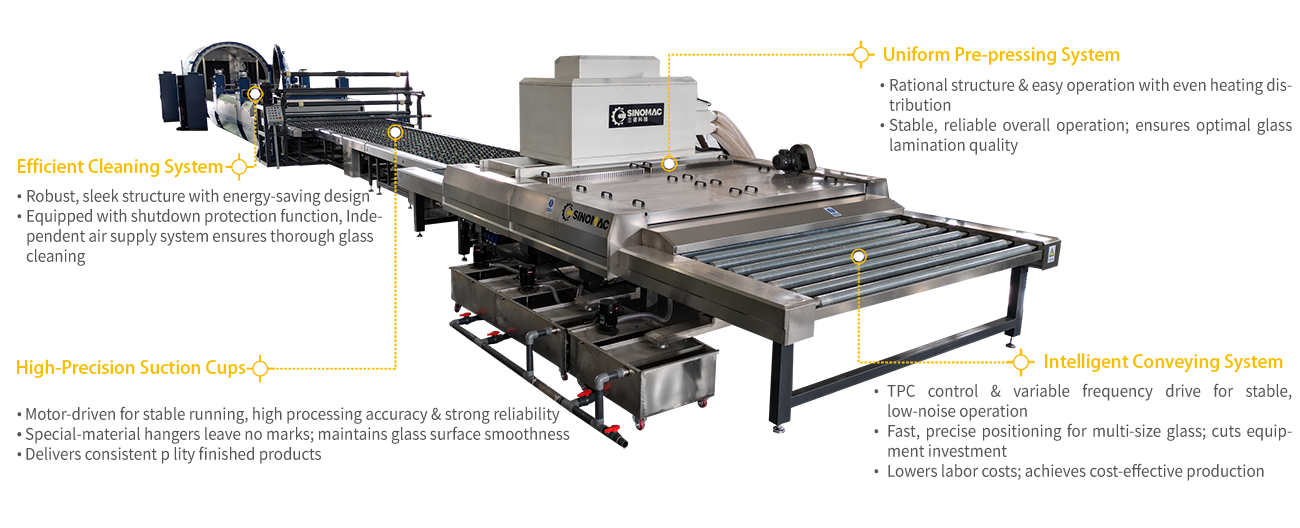

Intelligent Conveying System
TPC control & variable frequency drive for stable, low-noise operation.
Fast, precise positioning for multi-size glass; cuts equipment investment.
Lowers labor costs; achieves cost-effective production.
Uniform Pre-pressing System
Rational structure & easy operation with even heating distribution.
Stable, reliable overall operation; ensures optimal glass lamination quality.
High-Precision Suction Cups
Motor-driven for stable running, high processing accuracy & strong reliability.
Special-material hangers leave no marks; maintains glass surface smoothness.
Delivers consistent premium-quality finished products.
Efficient Cleaning System
Robust, sleek structure with energy-saving design.
Equipped with shutdown protection function, Independent air supply system ensures thorough glass cleaning.
Advantages
Precise Control
Self-developed TPC control software (high precision) and Siemens PLC for electrical control.
Efficient Cleaning
Sturdy, elegant cleaner with energy-saving design, shutdown protection and independent air supply for cleaner glass.
Stable & Reliable
Inverter and non-contact sensors ensure smooth operation, sensitive response, high precision and low wear; easy maintenance.
Clean Lamination
Special-material suckers of the hanger leave no marks on glass, ensuring high-quality products.
Parameters
| Model | Max. Glass Size (mm) | Min. Glass Size(mm) | Glass Thickness(mm) | Running Speed(m/min) | Power(KW) | Capacity |
|---|---|---|---|---|---|---|
| SN-JCX2050 | 2000×5000 | 300×420 | 4-80 | 0-2.5 | 130.8 | 1100 |
| SN-JCX2060 | 2000×6000 | 300×450 | 4-80 | 0-2.5 | 150.8 | 1200 |
| SN-JCX2560 | 2500×6000 | 300×450 | 4-80 | 0-2.5 | 147.3 | 1500 |
| SN-JCX2580 | 2500×8000 | 300×450 | 4-80 | 0-2.5 | 160.3 | 1800 |
| SN-JCX3080 | 3000×8000 | 300×450 | 4-80 | 0-2.5 | 181.2 | 2000 |
| SN-JCX3380 | 3300×8000 | 300×450 | 4-80 | 0-2.5 | 200.3 | 2350 |
| SN-JCX33120 | 3300×12000 | 300×450 | 4-80 | 0-2.5 | 211.4 | 3000 |
* All data above is for reference only. For detailed specifications, please refer to the actual product and official product manual. Unless otherwise stated, all data displayed on this website is reserved and interpreted by SINOMAC.
* For further information on other models, please feel free to contact us.
