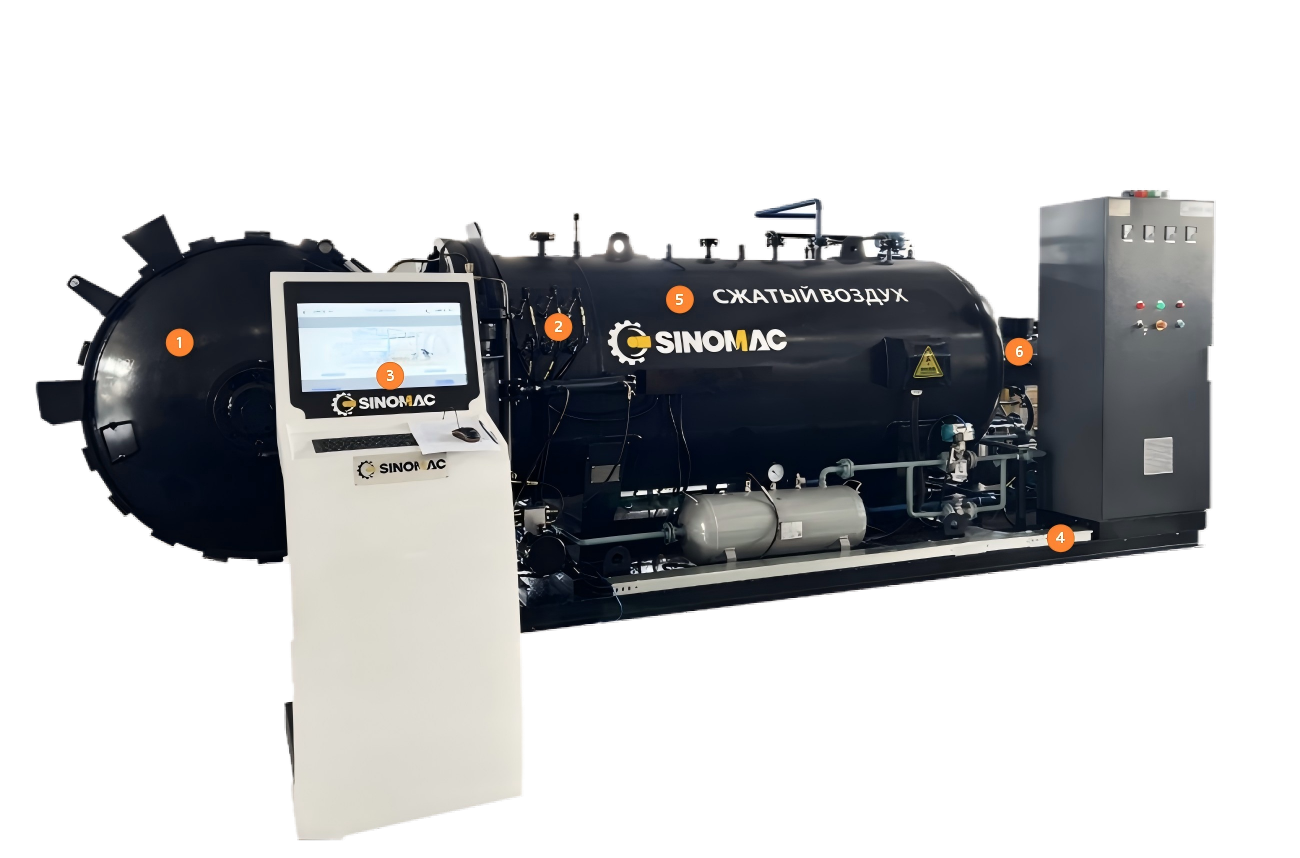

Laboratory Autoclave
Effective Diameter: 500 – 1000mm
Effective Length: 800 – 1500mm
Operating Temperature: 100 – 450℃
Operating Pressure: 0.8 – 5.0Mpa
Working Medium: Compressed Air / Nitrogen
Applications: Exclusively designed for material labs in universities, research institutes and corporate R&D centers. It is mainly used for curing process parameter exploration of new materials (e.g., advanced resins, prepregs), preparation of composite mechanical test specimens, small-batch prototype trial production and teaching demonstrations. It is an essential basic device for composites to move from fundamental research to engineering applications.
Introduction
The SINOMAC Laboratory Autoclave is a precision autoclave developed for scientific research and teaching purposes. With a compact design, it integrates complete control functions of temperature, pressure and vacuum processes in a minimal space. The equipment specially enhances process control accuracy and data recording integrity, providing reliable data support for scientific research. Its user-friendly design ensures simple and safe operation, making it ideal for laboratory environments. Featuring a small footprint, high cost-performance ratio, precise process control, comprehensive data logging and easy operation, this series serves as the perfect platform for composite material research and innovative education.
The SINOMAC Laboratory Autoclave is a precision autoclave developed for scientific research and teaching purposes. With a compact design, it integrates complete control functions of temperature, pressure and vacuum processes in a minimal space. The equipment specially enhances process control accuracy and data recording integrity, providing reliable data support for scientific research. Its user-friendly design ensures simple and safe operation, making it ideal for laboratory environments. Featuring a small footprint, high cost-performance ratio, precise process control, comprehensive data logging and easy operation, this series serves as the perfect platform for composite material research and innovative education.

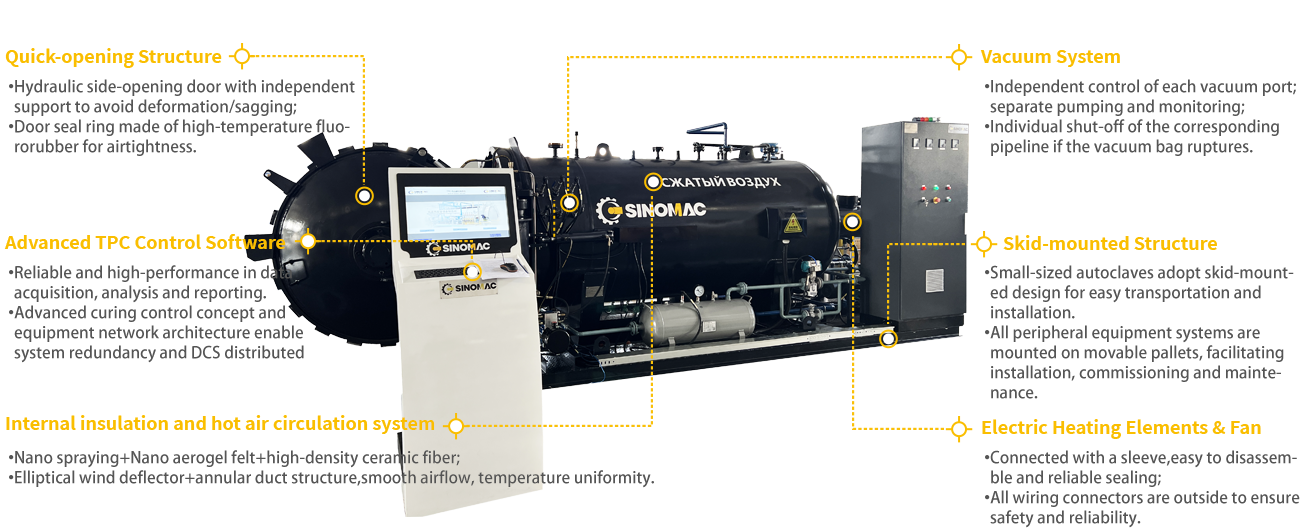

Quick-opening Structure
Hydraulic side-opening door with independent support to avoid deformation/sagging.
Door seal ring made of high-temperature fluororubber for airtightness.
Vacuum System
Independent control of each vacuum port; separate pumping and monitoring.
Individual shut-off of the corresponding pipeline if the vacuum bag ruptures.
Advanced TPC Control Software
Reliable and high-performance in data acquisition, analysis and reporting.
Advanced curing control concept and equipment network architecture enable system redundancy and DCS distributed control.
Skid-mounted Structure
Small-sized autoclaves adopt skid-mounted design for easy transportation and installation.
All peripheral equipment systems are mounted on movable pallets, facilitating installation, commissioning and maintenance.
Internal insulation and hot air circulation system
Nano spraying+Nano aerogel felt+high-density ceramic fiber.
Elliptical wind deflector+annular duct structure,smooth airflow, temperature uniformity.
Electric Heating Elements & Fan
Connected with a sleeve,easy to disassemble and reliable sealing.
All wiring connectors are outside to ensure safety and reliability.
Advantages
Multiple Safety Protection
Mechanical, electrical and software interlocks ensure safe operation of autoclaves as pressure vessels.
Modular Design
Modular pressure, cooling, vacuum and loading systems enable easy installation and maintenance.
TPC Control Software
Windows-based advanced TPC system with reliable performance and powerful data acquisition, analysis and reporting.
Global Service
Compliant with GB150, ASME, PED, EAC(GOST) and other global standards, serving worldwide customers.
Parameters
Model | Working Diameter(mm) | Working Length(mm) | Working Temperature (ºC) | Working Pressure (Mpa) | Part Thermocouple | Vacuum line |
|---|---|---|---|---|---|---|
| SN-CGF0580G | 500 | 800 | 100-450 | 0.8~5.0 | 4 | 4 |
| SN-CGF0510G | 500 | 1000 | 100-450 | 0.8~5.0 | 4 | 4 |
| SN-CGF0515G | 500 | 1500 | 100-450 | 0.8~5.0 | 4 | 4 |
| SN-CGF0810G | 800 | 1000 | 100-450 | 0.8~5.0 | 4 | 4 |
| SN-CGF0815G | 800 | 1500 | 100-450 | 0.8~5.0 | 4 | 4 |
| SN-CGF1010G | 1000 | 1000 | 100-450 | 0.8~5.0 | 4 | 4 |
| SN-CGF1015G | 1000 | 1500 | 100-450 | 0.8~5.0 | 4 | 4 |
* All data above is for reference only. For detailed specifications, please refer to the actual product and official product manual. Unless otherwise stated, all data displayed on this website is reserved and interpreted by SINOMAC.
* For further information on other models, please feel free to contact us.
