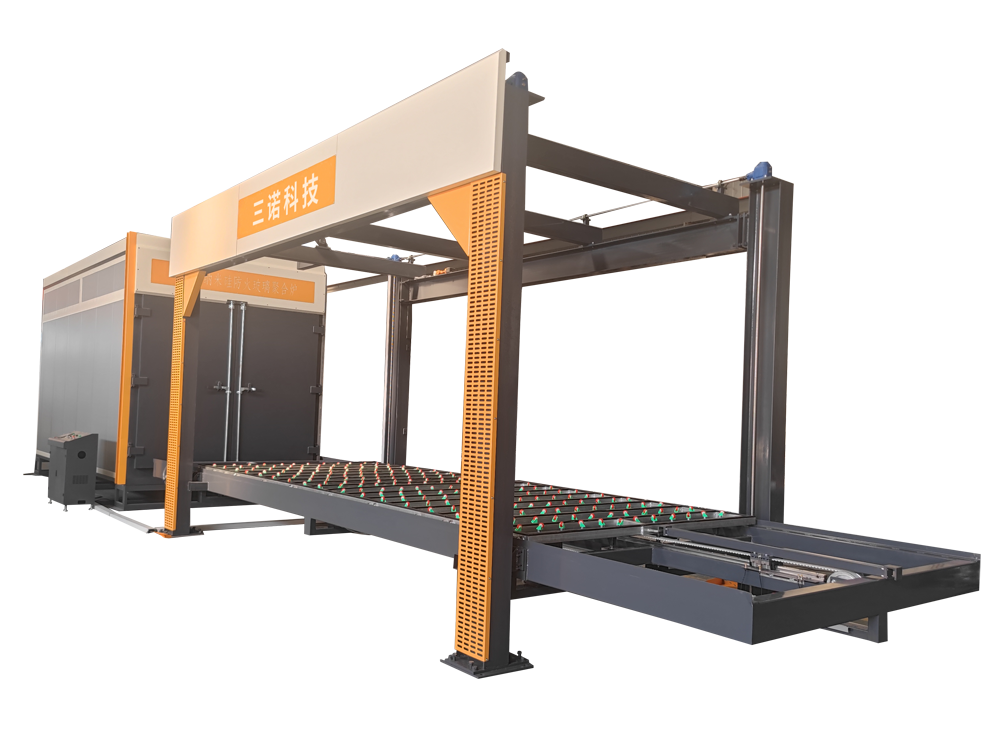

Fire-Resistant Glass Furnace
Working Length: 1000 - 5000mm
Working Width: 1000 - 5000mm
Working Height: 1000 - 5000mm
Working Temperature: 100 - 500℃
Temperature Uniformity: ±2℃
Application: This key equipment for fire-resistant glass production serves scenarios with stringent fire protection requirements, including public buildings, industrial facilities, means of transportation, museums, archives, and high-end residential buildings. It endows glass with superior fire integrity, delivering core safety guarantees for diverse architectural and special applications.
Introduction
As a core heat treatment equipment for high-strength fire-resistant glass, SINOMAC fire-resistant glass furnace integrates advanced hot air circulation and multi-zone precise temperature control, ensuring uniform temperature distribution in the furnace and stable stress release of glass during heating.
Equipped with high-precision temperature monitoring and full-process data logging, it realizes controllable and traceable production. With excellent heating uniformity, high temperature control accuracy, stable and reliable operation, it guarantees fire endurance compliance and consistent product quality, serving as a key equipment for architectural glass deep-processing enterprises to meet fire protection needs of high-rise buildings and special venues.
As a core heat treatment equipment for high-strength fire-resistant glass, SINOMAC fire-resistant glass furnace integrates advanced hot air circulation and multi-zone precise temperature control, ensuring uniform temperature distribution in the furnace and stable stress release of glass during heating.
Equipped with high-precision temperature monitoring and full-process data logging, it realizes controllable and traceable production. With excellent heating uniformity, high temperature control accuracy, stable and reliable operation, it guarantees fire endurance compliance and consistent product quality, serving as a key equipment for architectural glass deep-processing enterprises to meet fire protection needs of high-rise buildings and special venues.

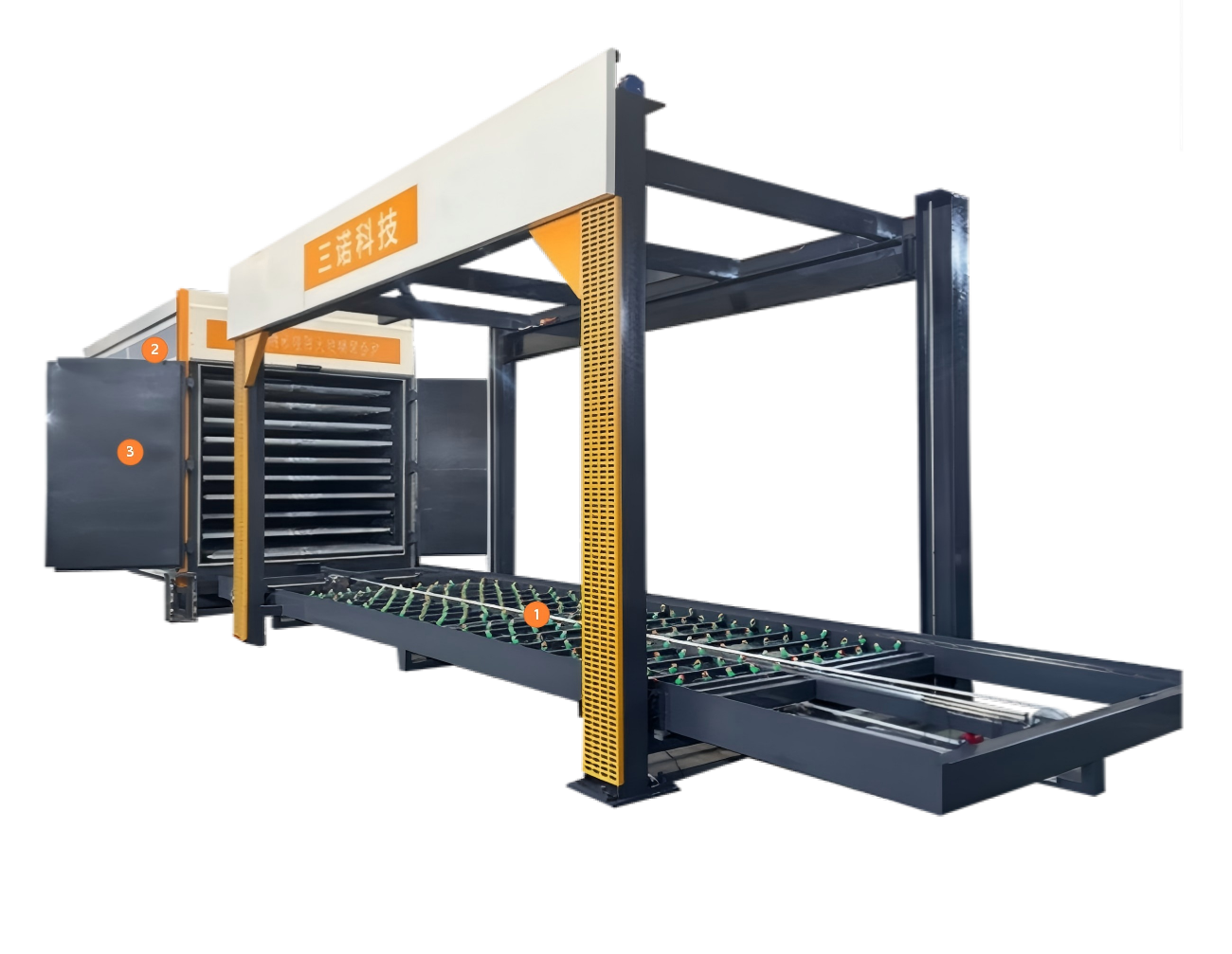

Rail System
Equipped with a transfer trolley and loading trolley for convenient transportation.
Can be matched with Sinomac pre-process treatment glass production lines.
Compound Internal Insulation & Hot Air Circulation System
Aluminum silicate internal insulation is used to reduce heat loss.
Air ducts are arranged on both sides and top of the oven; hot air is drawn back by the top fan and blown to both sides.
Heating Elements
Heating elements are distributed in the air ducts on both sides of the oven; hot air circulates from top to bottom.
The on-off control of heating elements is regulated by a silicon-controlled rectifier (SCR), achieving 0-100% proportional output.
Advantages
Precise Control
Self-developed TPC control software (high precision) and Siemens PLC for electrical control.
Efficient Cleaning
Sturdy, elegant cleaner with energy-saving design, shutdown protection and independent air supply for cleaner glass.
Stable & Reliable
Inverter and non-contact sensors ensure smooth operation, sensitive response, high precision and low wear; easy maintenance.
Clean Lamination
Special-material suckers of the hanger leave no marks on glass, ensuring high-quality products.
Parameters
| Model | Max. Glass Size (mm) | Min. Glass Size(mm) | Glass Thickness(mm) | Running Speed(m/min) | Power(KW) | Capacity |
|---|---|---|---|---|---|---|
| SN-JCX2050 | 2000*5000 | 300*420 | 4-80 | 0-2.5 | 130.8 | 1100 |
| SN-JCX2060 | 2000*6000 | 300*450 | 4-80 | 0-2.5 | 150.8 | 1200 |
| SN-JCX2560 | 2500*6000 | 300*450 | 4-80 | 0-2.5 | 147.3 | 1500 |
| SN-JCX2580 | 2500*8000 | 300*450 | 4-80 | 0-2.5 | 160.3 | 1800 |
| SN-JCX3080 | 3000*8000 | 300*450 | 4-80 | 0-2.5 | 181.2 | 2000 |
| SN-JCX3380 | 3300*8000 | 300*450 | 4-80 | 0-2.5 | 200.3 | 2350 |
| SN-JCX33120 | 3300*12000 | 300*450 | 4-80 | 0-2.5 | 211.4 | 3000 |
* All data above is for reference only. For detailed specifications, please refer to the actual product and official product manual. Unless otherwise stated, all data displayed on this website is reserved and interpreted by SINOMAC.
* For further information on other models, please feel free to contact us.
