Autoclave for Architectural Safety Glass
Effective Diameter: 1200 – 3650mm
Effective Length: 2000 – 12000mm
Max. Glass Size: 1000×2000mm – 3300×12000mm
Design Temperature: 160℃
Design Pressure: 1.5Mpa
Applications: Specifically designed for the pre-treatment and high-pressure forming of architectural safety laminated glass, including curtain wall glass, skylight glass, fire-resistant glass, bulletproof glass and other architectural laminated glass products. The high-temperature and high-pressure process achieves permanent bonding between glass and PVB interlayers, producing architectural safety glass with excellent safety, sound insulation and impact resistance.
Introduction
The SINOMAC Autoclave for Architectural Safety Glass is a key piece of equipment specially designed for architectural safety glass production lines. Adopting a specialized uniform temperature field design and optimized air flow organization, it ensures even heating of extra-large architectural glass during processing, completely eliminates air bubbles, and achieves optimal bonding between glass and PVB interlayers. Equipped with an intelligent temperature-pressure linked control system and multiple layers of safety protection devices, it meets the processing requirements of large-size and high-strength architectural glass. Featuring large processing capacity, high automation, stable operation and reliable safety, this series ensures all performance indicators of architectural safety glass with its unique design, and is the preferred equipment for architectural glass manufacturers to produce high-quality safety glass.
The SINOMAC Autoclave for Architectural Safety Glass is a key piece of equipment specially designed for architectural safety glass production lines. Adopting a specialized uniform temperature field design and optimized air flow organization, it ensures even heating of extra-large architectural glass during processing, completely eliminates air bubbles, and achieves optimal bonding between glass and PVB interlayers. Equipped with an intelligent temperature-pressure linked control system and multiple layers of safety protection devices, it meets the processing requirements of large-size and high-strength architectural glass. Featuring large processing capacity, high automation, stable operation and reliable safety, this series ensures all performance indicators of architectural safety glass with its unique design, and is the preferred equipment for architectural glass manufacturers to produce high-quality safety glass.

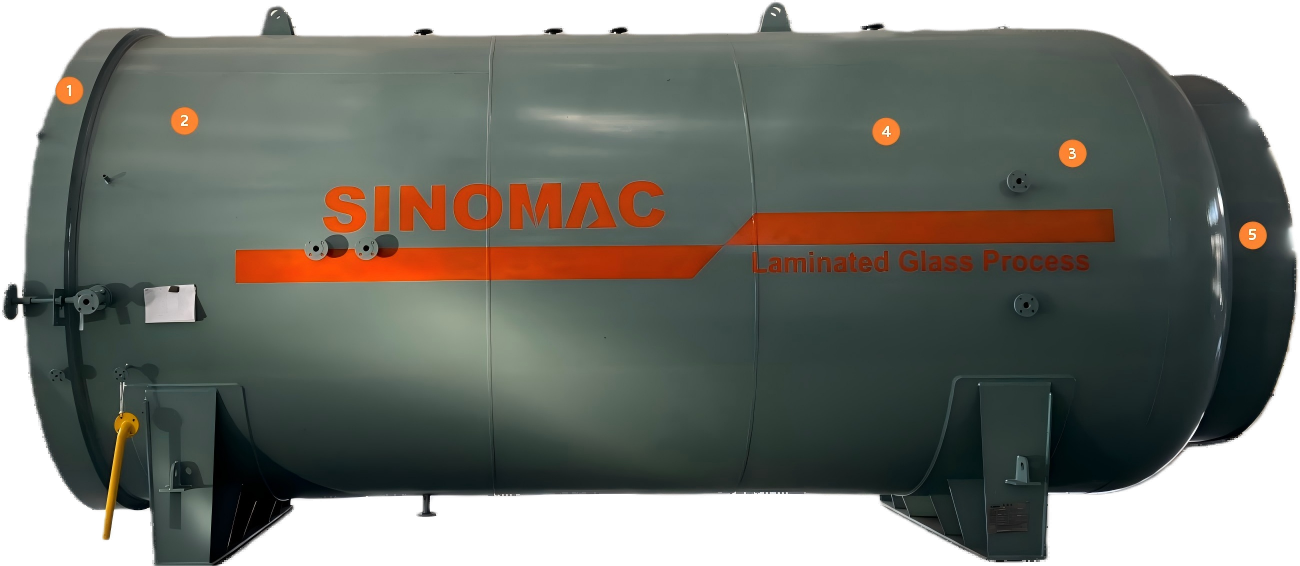

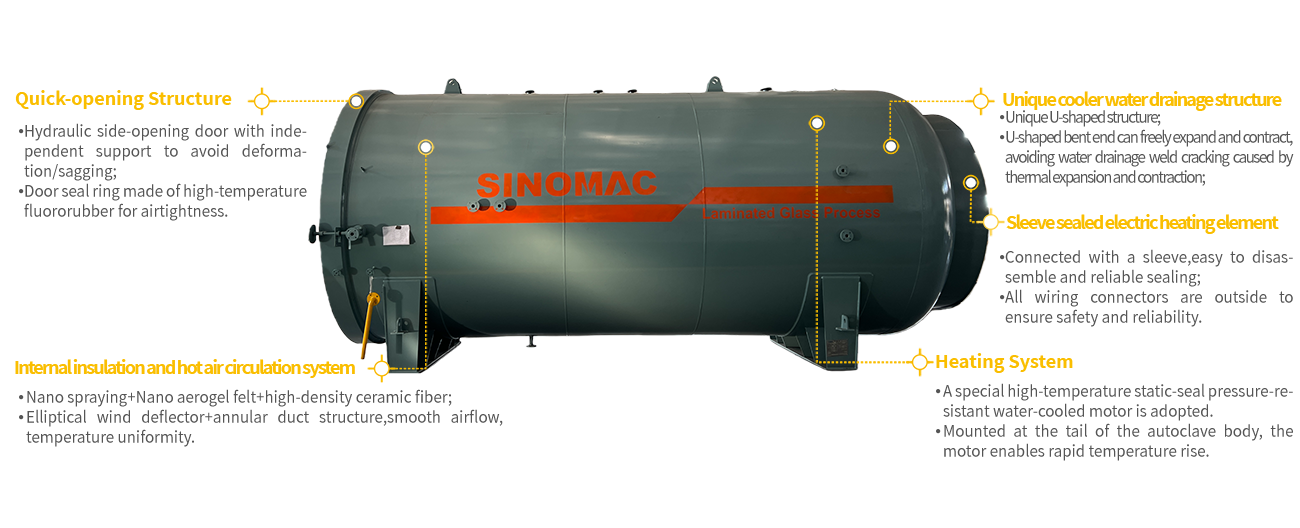

Quick-opening Structure
Hydraulic side-opening door with independent support to avoid deformation/sagging.
Door seal ring made of high-temperature fluororubber for airtightness.
Internal insulation and hot air circulation system
Nano spraying+Nano aerogel felt+high-density ceramic fiber.
Elliptical wind deflector+annular duct structure,smooth airflow, temperature uniformity.
Sleeve sealed electric heating element
Connected with a sleeve,easy to disassemble and reliable sealing.
All wiring connectors are outside to ensure safety and reliability.
Unique cooler water drainage structure
Unique U-shaped structure.
U-shaped bent end can freely expand and contract, avoiding water drainage weld cracking caused by thermal expansion and contraction.
Heating System
A special high-temperature static-seal pressure-resistant water-cooled motor is adopted.
Mounted at the tail of the autoclave body, the motor enables rapid temperature rise.
Advantages
Multiple Safety Protection
Mechanical, electrical & software interlocks ensure maximum safety for glass autoclaves.
Multi-Function Design
One autoclave supports both laminated glass production and tempered glass heat soak treatment, cutting costs on investment, power and workshop space.
Multiple heating methods
Standard electric heating; steam, thermal oil & natural gas options available for diverse demands.
Global Service
Built to GB150, ASME, PED, EAC(GOST) and global standards, serving worldwide.
Parameters
| Model | Working Diameter(mm) | Working Length(mm) | Working Temperature (ºC) | Working Pressure (Mpa) | Max Glass size(mm) | Power(KW) |
|---|---|---|---|---|---|---|
| SN-BGF1220 | 1200 | 2000 | 160 | 1.6 | 1000×2000 | 54 |
| SN-BGF2040 | 2000 | 4000 | 160 | 1.6 | 1600×4000 | 72 |
| SN-BGF2660 | 2650 | 6000 | 160 | 1.6 | 2300×6000 | 144 |
| SN-BGF2860 | 2850 | 6000 | 160 | 1.6 | 2500×6000 | 162 |
| SN-BGF3060 | 3000 | 6000 | 160 | 1.6 | 2650×6000 | 192 |
| SN-BGF3080 | 3000 | 8000 | 160 | 1.6 | 2650×8000 | 225 |
| SN-BGF3380 | 3350 | 8000 | 160 | 1.6 | 3000×8000 | 270 |
| SN-BGF35100 | 3500 | 10000 | 160 | 1.6 | 3150×10000 | 441 |
| SN-BGF36120 | 3650 | 12000 | 160 | 1.6 | 3300×12000 | 567 |
* All data above is for reference only. For detailed specifications, please refer to the actual product and official product manual. Unless otherwise stated, all data displayed on this website is reserved and interpreted by SINOMAC.
* For further information on other models, please feel free to contact us.
