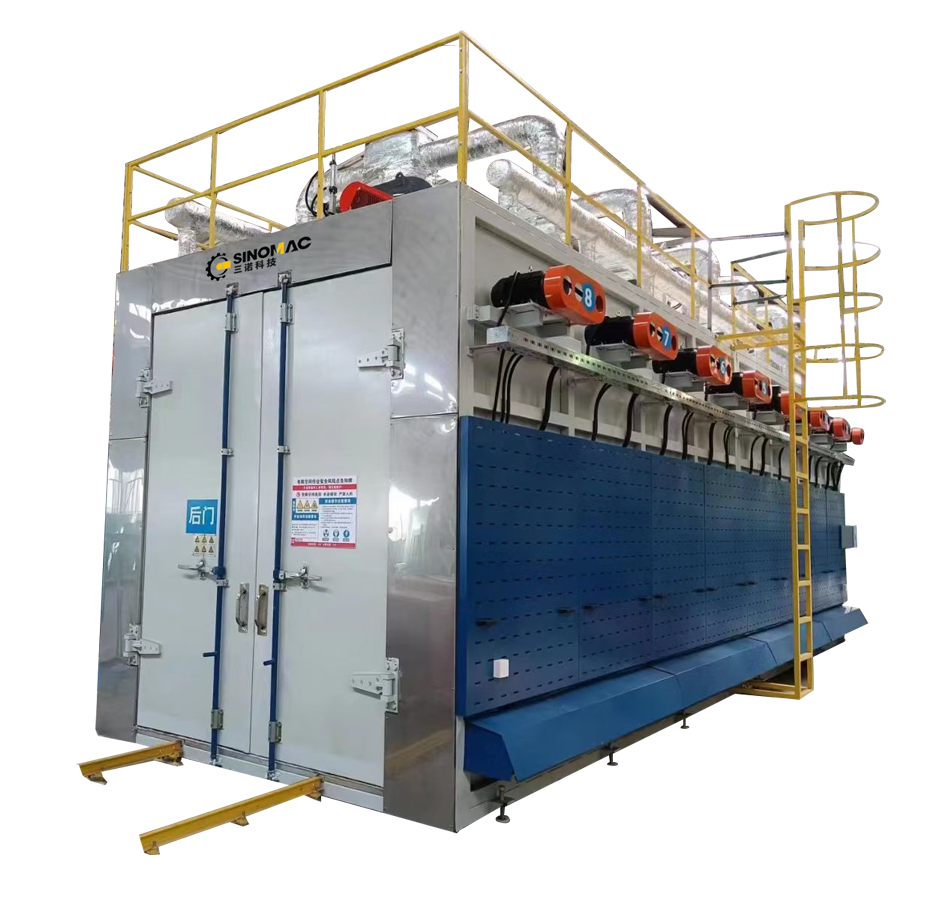

Glass Homogenizing Oven
Working Length: 1000 – 5000mm
Working Width: 1000 – 5000mm
Working Height: 1000 – 5000mm
Working Temperature: 100 – 500℃
Temperature Uniformity: ±2℃
Applications: Specifically designed for the homogenization of architectural tempered glass, it is a key device for producing safety glass. Homogenization effectively eliminates the self-explosion risk of tempered glass and significantly improves the safety of architectural glass. It is widely used in the treatment of high-safety-required architectural tempered glass such as curtain wall glass, skylights and guardrail glass.
Introduction
The SINOMAC Glass Homogenizing Oven is special equipment designed for the homogenization of tempered glass. Adopting an advanced hot air circulation system and precise temperature control technology, it ensures uniform temperature distribution inside the oven, enabling consistent heating of glass for optimal homogenization results. Equipped with a comprehensive temperature monitoring and recording system, it can real-time monitor and record temperature data throughout the homogenization process. Featuring excellent temperature uniformity, high control accuracy, easy operation, safety and reliability, this series ensures the effectiveness and reliability of tempered glass homogenization with its unique design. It is an important device for architectural glass manufacturers to improve product safety.
The SINOMAC Glass Homogenizing Oven is special equipment designed for the homogenization of tempered glass. Adopting an advanced hot air circulation system and precise temperature control technology, it ensures uniform temperature distribution inside the oven, enabling consistent heating of glass for optimal homogenization results. Equipped with a comprehensive temperature monitoring and recording system, it can real-time monitor and record temperature data throughout the homogenization process. Featuring excellent temperature uniformity, high control accuracy, easy operation, safety and reliability, this series ensures the effectiveness and reliability of tempered glass homogenization with its unique design. It is an important device for architectural glass manufacturers to improve product safety.

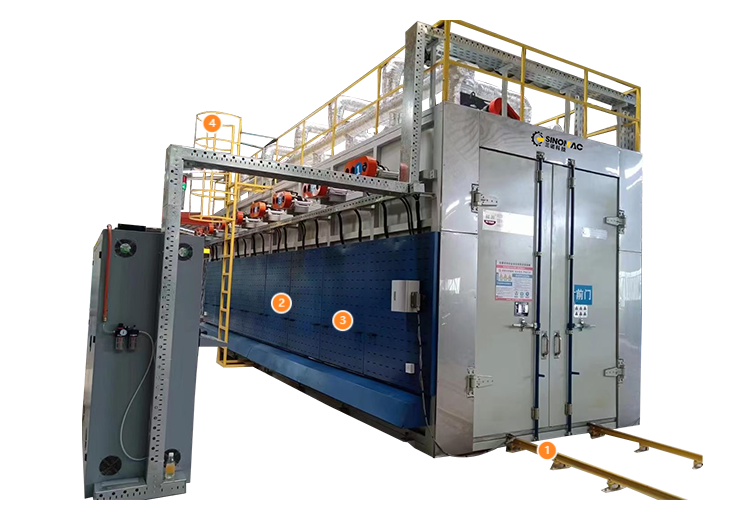

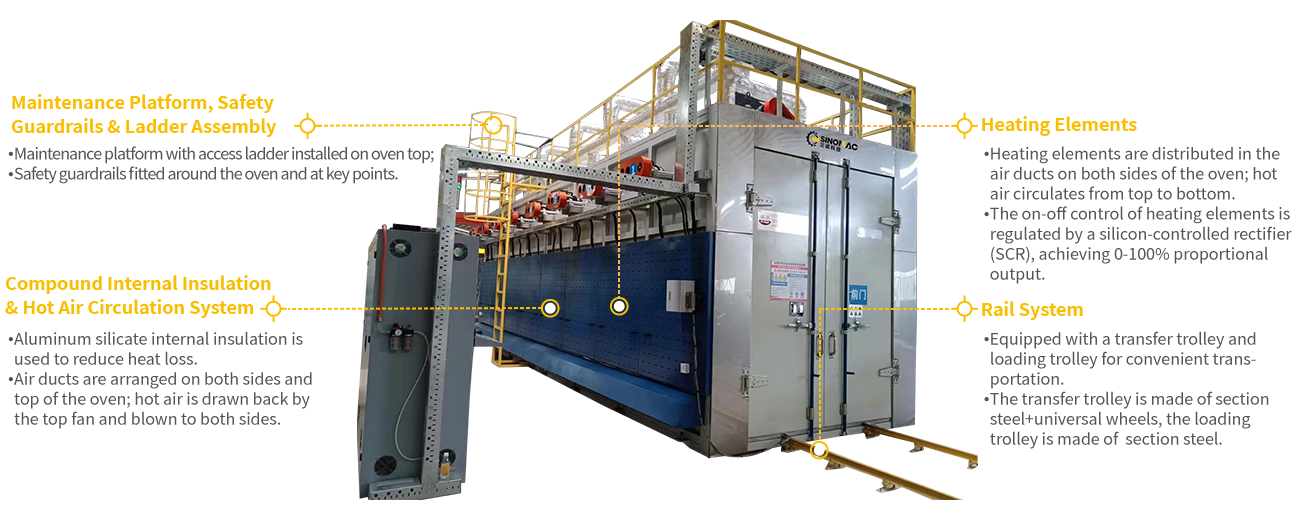

Rail System
Equipped with a transfer trolley and loading trolley for convenient transportation.
The transfer trolley is made of section steel+universal wheels, the loading trolley is made of section steel.
Compound Internal Insulation & Hot Air Circulation System
Aluminum silicate internal insulation is used to reduce heat loss.
Air ducts are arranged on both sides and top of the oven; hot air is drawn back by the top fan and blown to both sides.
Heating Elements
Heating elements are distributed in the air ducts on both sides of the oven; hot air circulates from top to bottom.
The on-off control of heating elements is regulated by a silicon-controlled rectifier (SCR), achieving 0-100% proportional output.
Maintenance Platform, Safety Guardrails & Ladder Assembly
Maintenance platform with access ladder installed on oven top;
Safety guardrails fitted around the oven and at key points.
Advantages
Highly Integrated Vacuum System
Integrated multi-port vacuum system with jack panel for easy thermocouple and vacuum bag connection, enabling full-process monitoring.
Modular Zoned Control
Unique modular design with zoned control optimizes production efficiency.
Excellent Temperature Uniformity
Standard uniformity: ±2°C or better, guaranteeing stable curing quality.
Diverse Manufacturing Standards
Compliant with AMS2750, BAC5621, NADCAP, AS9100 and global standards, serving customers worldwide.
Parameters
| Model | Effective Inner Dimensions L*W*H(m) | Working Temperature (ºC) | Temperature Uniformity (ºC) | Part Thermocouple | Vacuum line | Heating Power(KW) |
|---|---|---|---|---|---|---|
| SN-GHL0805 | 0.8*0.5*0.5 | 250-420 | ±3 | 10-80 | 4-40 | 6 |
| SN-GHL1008 | 1.0*0.8*0.8 | 250-420 | ±3 | 10-80 | 4-40 | 12 |
| SN-GHL1515 | 1.5*1.5*1.5 | 250-420 | ±3 | 10-80 | 4-40 | 36 |
| SN-GHL2015 | 2.0*1.5*1.5 | 250-420 | ±3 | 10-80 | 4-40 | 54 |
| SN-GHL2515 | 2.5*1.5*1.5 | 250-420 | ±3 | 10-80 | 4-40 | 63 |
| SN-GHL3020 | 3.0*2.0*2.0 | 250-420 | ±3 | 10-80 | 4-40 | 108 |
| SN-GHL4020 | 4.0*2.0*2.0 | 250-420 | ±3 | 10-80 | 4-40 | 126 |
| SN-GHL4025 | 4.0*2.5*2.5 | 250-420 | ±3 | 10-80 | 4-40 | 144 |
| SN-GHL5025 | 5.0*2.5*2.5 | 250-420 | ±3 | 10-80 | 4-40 | 162 |
| SN-GHL6030 | 6.0*3.0*3.0 | 250-420 | ±3 | 10-80 | 4-40 | 216 |
* All data above is for reference only. For detailed specifications, please refer to the actual product and official product manual. Unless otherwise stated, all data displayed on this website is reserved and interpreted by SINOMAC.
* For further information on other models, please feel free to contact us.
